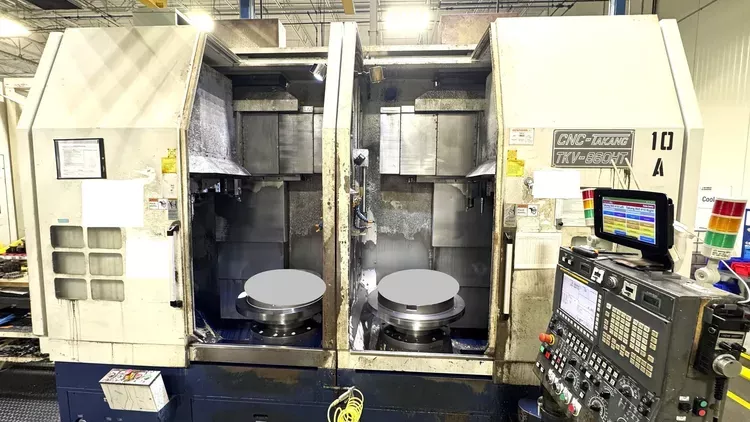

Takang TKV-860-HT Swing 39.97"

X-axis travel 18.31"
Z-axis travel 33.07"
X-axis thrust force 2,950 lb
Z-axis thrust force 3,170 lb
X-axis ballscrew diameter/pitch 1.57"/0.47"
Z-axis ballscrew diameter/pitch 0.97"/0.47"
X & Z rapid traverse rate 630 ipm

Control Fanuc 0iTD
Ballscrew cooling forced oil

Swing 39.97"
Max swing diameter 39.37"
Turning diameter 31.5"
Machining length 33.85"

Spindle motor power 50 hp (each spindle)
Spindle speed range 10–1,500 rpm
Spindle nose A2-11
Front bearing diameter 7.87"
Spindle bearings double-row cylindrical and angular contact

Feedrates 0.00001–18.18 ipr
Feedrate override 0–200%

Chuck size 31.5"
Standard 3-jaw hydraulic chucks
Max chuck diameter optional 36"
Turret type V12
Turret tool capacity 12
Curvic coupling diameter 11.42"
Turret clamping force 12,590 lb
Indexing time 0.7 sec
Turning tool size 1.25" × 1.25"
Max boring bar size 2.0" & 2.5"

Weight 63,800 lb
Height 160"
Floor space 96" × 108"
Hydraulic tank 10.6 gal
Slideway lubrication tank 1.59 gal
Coolant tank 118 gal
Chip conveyors (2 rear discharge)
Automatic doors (2)
Cutting hours 5,505
High-pressure coolant 57 psi
High-pressure coolant 120 psi
Tool setter preparation
Tool/work counter
Machine light
Transformer 85 kVA
All turning and boring bar holders
Oil mist filter
