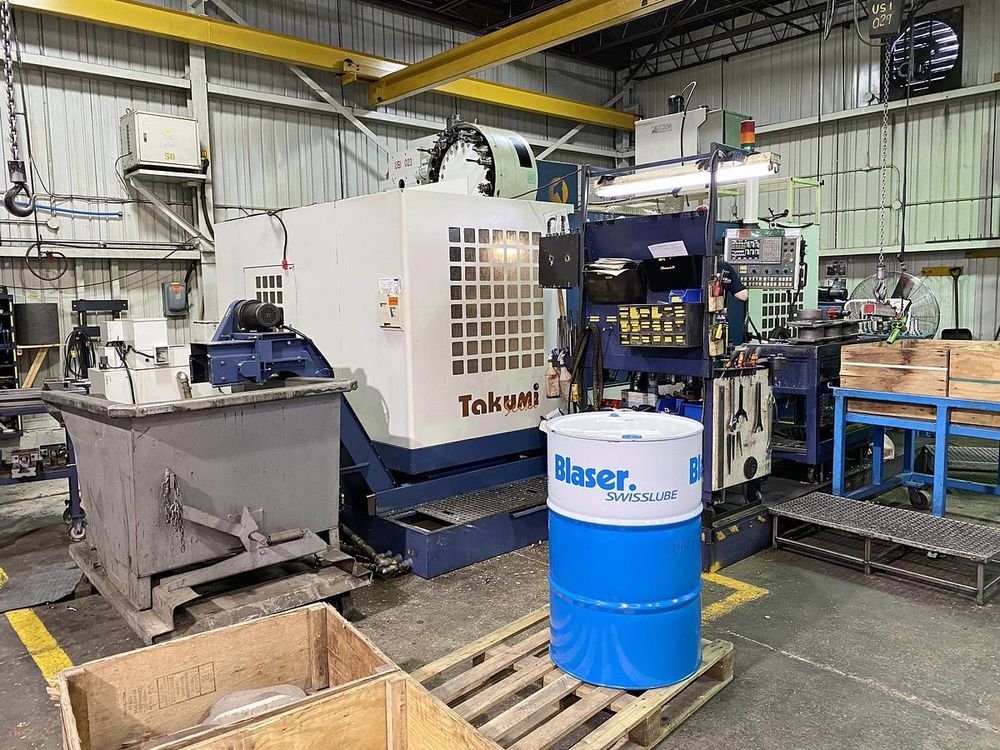

Takumi V22 3 Axis

X-Axis Travel: 2200mm
Y-Axis Travel: 1020mm
Z-Axis Travel: 750mm
Rapid Feedrate (X/Y/Z): 12/12/12 m/min
Cutting Feed Rate: 5000mm/min
Control: Mitsubishi
Distance Spindle Nose to Table: 200–950mm
Distance Spindle Center to Column: 1120mm
Spindle Speed: 6000rpm (Gear)
Spindle Motor: 26HP
Spindle Taper: ISO 50
Tool Magazine Capacity: 24T Arm Type
Max Tool Diameter (Adjacent Empty): 200mm
Max Tool Diameter (Adjacent Installed): 110mm
Max Tool Length: 300mm
Max Tool Weight: 15kg
Table Size: 2200 × 1025mm
Table Load Capacity: 3000kg
T-Slot Size: 22mm × 7
Machine Weight: 19700kg

Chip Conveyor
Coolant Tank
Chiller
