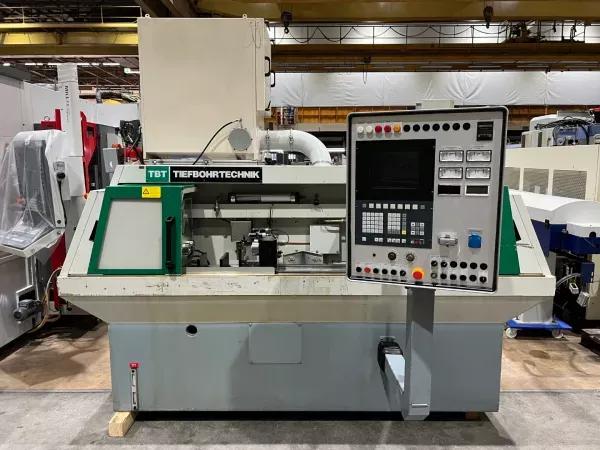

TBT ML 200-2-850 3000 rpm
Ref :
2742281-3-AW
Condition :
Used
Manufacturer :
TBT
Model :
ML 200-2-850
Spindle Speed :
3000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Number of spindles 2
Drill carriage stroke 850 mm
Drilling method Single-lip drilling
Drilling depth with submersible spindle 120 mm
Drilling depth with sealing housing 400 mm
Drilling depth with sealing housing and bezel 350 mm
Spindle drive power 2 / 3.5 / 1.5 kW
Spindle drive voltage 140 / 350 / 350 V
Feed rate 20–500 mm/min
Rapid traverse speed NC operation 12 m/min
Feed force 1.5 kN
Feed motor power 2.2 Nm at 3000 rpm
Tailstock motor power 0.75 kW at 1000 rpm
Tailstock spindle speed 500 rpm
Tailstock max stroke 200 mm
Machine length 4600 mm
Machine width 2500 mm
Machine height 2100 mm
Transport weight 3200 kg
Control Sinumerik 805 M
