Tecan Infinite M Plex Nano 200 Pro Microplate Reader

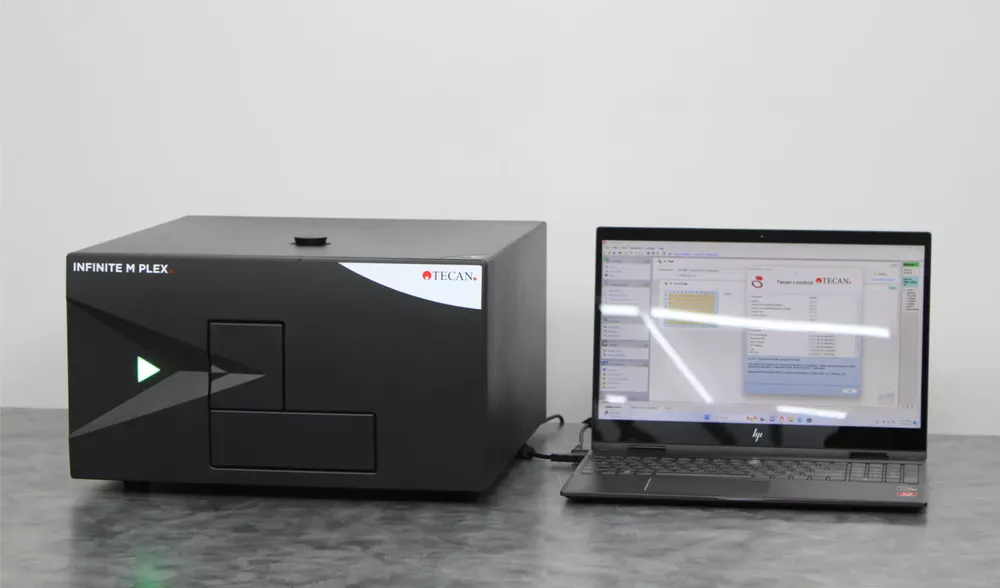

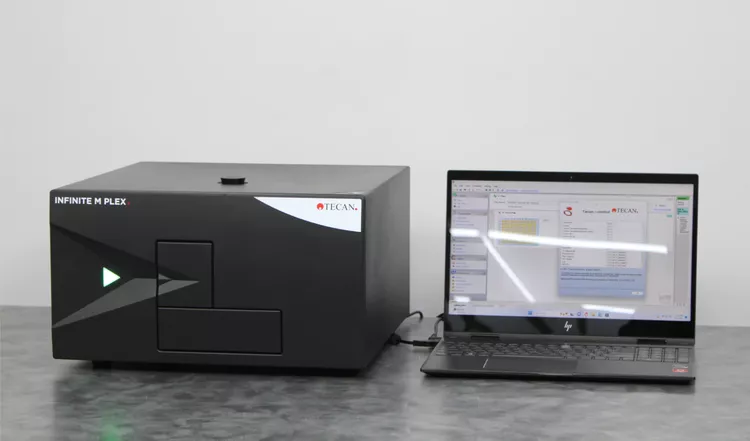

Infinite M Plex Nano 200 Pro Microplate Reader 30050303 with Laptop

Mfg. date 20210218
Power rating 100-120VAC / 220-240VAC, 50/60Hz, 150VA
Dimensions (W x D x H) 17 x 18 x 9.5 in
Light source UV Xenon flashlamp
Wavelength selection Quad4 Monochromators system (2 excitation and 2 emission monochromators)
Bandwidth Ex: < 5 nm for λ ≤ 315 nm and < 9 nm for λ > 315 nm; Em: < 20 nm
Wavelength accuracy Absorbance: < ± 0.5 nm for λ > 315 nm; < ± 0.3 nm for λ ≤ 315 nm
Fluorescence: < ± 2 nm for λ > 315 nm; < ± 1 nm for λ ≤ 315 nm
Wavelength reproducibility Absorbance: < ± 0.5 nm for λ > 315 nm; < ± 0.3 nm for λ ≤ 315 nm
Fluorescence: < ± 1 nm for λ > 315 nm; < ± 0.5 nm for λ ≤ 315 nm
Wavelength range Fluorescence intensity: Ex 230 – 850 nm, Em 280 – 850 nm
Absorbance: 230 - 1000 nm
Detectors Fluorescence – PMT, UV and red-sensitive
Absorbance – UV silicon photodiode
Luminescence –photon counting system with low dark current PMT
Plate formats 6- to 384-well plates, cuvettes, NanoQuant plate
Temperature control Ambient +5°C up to 42°C
Shaking Linear, orbital
Fluorescence sensitivity values Top reading: 170 amol / well (100 μl; 384-well plate)
Bottom reading: 9.0 fmol / well (200 μl; 96-well plate)
TRF: 90 amol / well (100 μl; 384-well plate)
Absorbance ratio accuracy @ 260 / 280 nm ± 0.07
Precision @ 260 nm < 0.2%
Accuracy @ 260 nm < 0.5%
Measurement range 0 - 4 OD
Injector pump speed 100 - 300µl/s
Injection volume selectable in 1µl increments; max. volume: 800 µl per stroke
Dead volume 100 µl including pump back
Fastest read times 96-well plate: 20 sec
384-well plate: 30 sec
Wavelength Ex / Em-scan, 96-well plate (450 - 550 nm, 5 nm step): 150 sec
