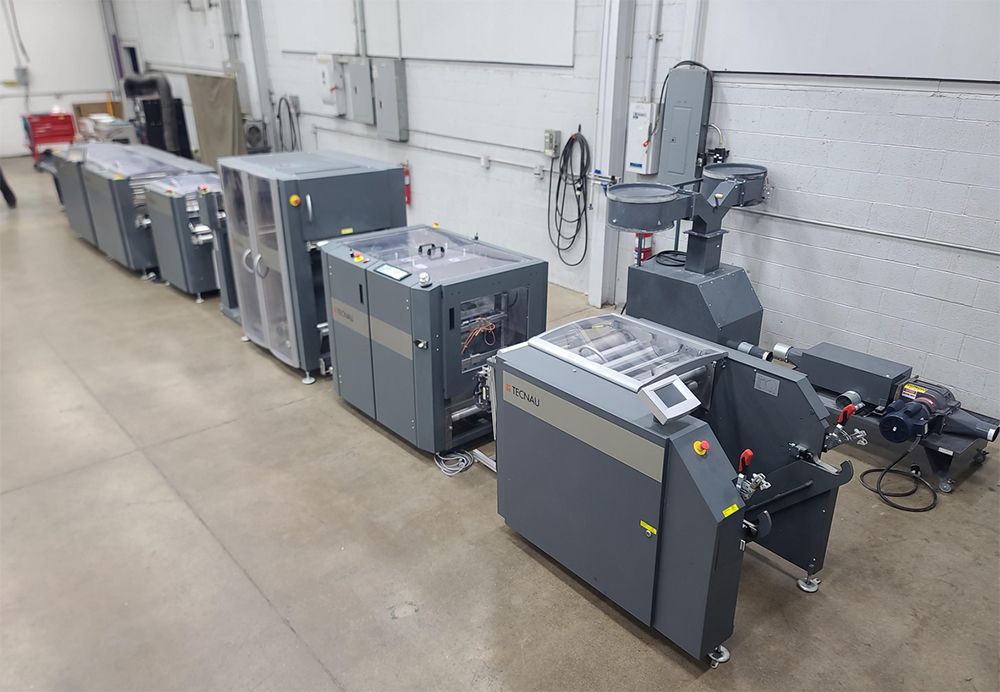

Tecnau Roll Fed Sheeting System w/ C23 Cutter, Lasermax Unwind, Slitter, Merger, Buffer & Stacker 5.5″ – 20.5″

Configuration:
Lasermax Roll Systems Unwind
Integrated Slitting Module
Tecnau C23 High-Speed Cutter
Tecnau Merger M20
Tecnau Buffer 530
Tecnau Stacker S20
Inline Conveyor / Transport Sections

Features:
Complete roll-to-sheet finishing system
Integrated slitting for multi-up processing and format flexibility
Merging capability for combining multiple streams into a single output
Slit + merge (via M20)
Continuous buffering (Buffer 530 prevents stopping line)
Automated and continuous stacking delivery without stopping printer
Designed for inline or nearline integration with digital print environments
Handles a wide range of roll-fed substrates
Modular design allows flexible configuration and serviceability
Offset Stacking: yes (job separation)
Dual rotary knife cutting (C23)
Variable cut length on the fly
Full-bleed / chip-out cutting

Applications:
Digital print roll-to-sheet conversion
Transactional and direct mail production
Book block and document finishing
Commercial print finishing
Short-run and on-demand print environments
Variable data printing workflows
Cut sheet production from continuous feed printers
Forms and statement processing

Specifications:
Max Speed: up to ~450–550 ft/min
Processing: Roll-to-sheet, inline or nearline
Formats: 1-up, 2-up, 3-up processing
Paper Weight: approx. 40 – 250 gsm
Web Width: approx. 5.5″ – 20.5″
Cut Length: approx. 8″ – 18″
Strip Cut (chip-out): 1/8″ – 3/4″
Stack Height: up to ~10″ (~2000 sheets depending on stock)
Buffer 530: Year 2014
TC 1550 Plus T 1 Perforator: Year 2015
Merger M20: Year 2015
Cutter C23: Year 2015
Stacker S20: Year 2015
