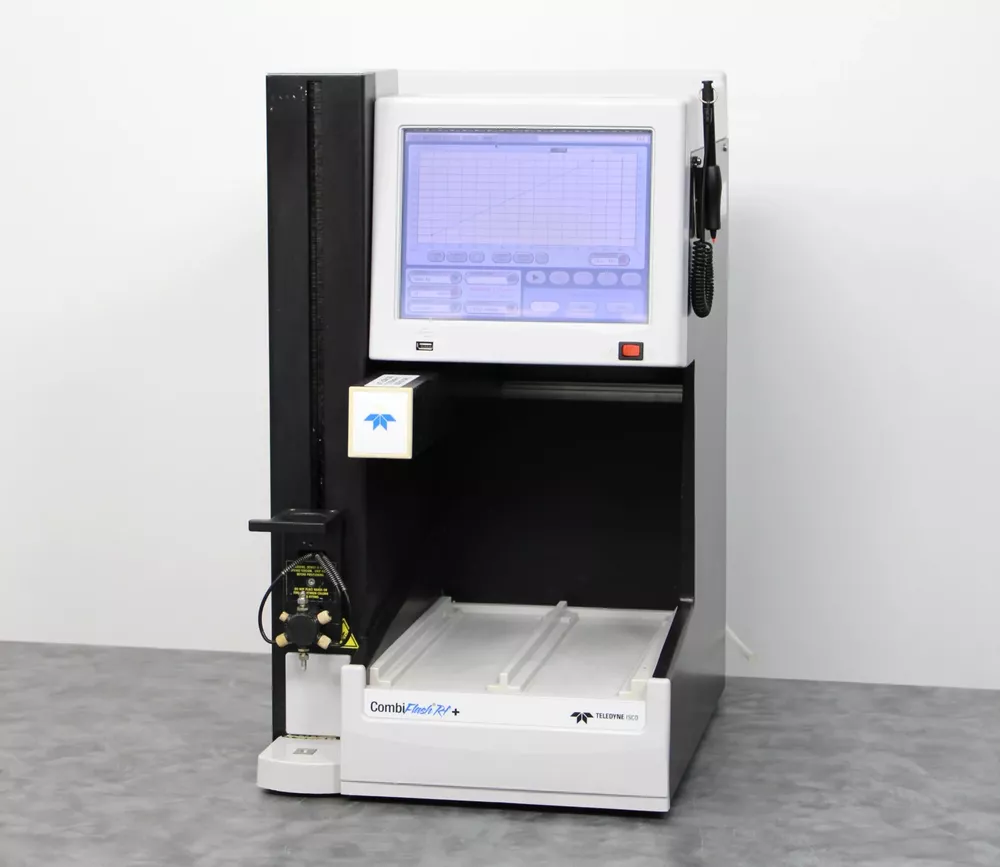

Teledyne Isco CombiFlash Rf+ 625230021 Automated Flash Chromatography

Flow rate range 1 to 200 mL/min
Flow rate accuracy (tested with water at 138 kPa or 20 psi) +/- 5% (5-200 mL/min)
Pressure limit Up to 1379 kPa (200 psi) (column dependent)
Pressure accuracy 5% of full scale
Gradient formation Binary gradient from 1, 2, and 3, 4 solvent inlets. Solvent selection can be automatically controlled by the method.
Gradient accuracy +/- 1% of full scale
Peak detection modes Slope or threshold
Flow cell pathlength 0.1mm, +/- 25%
UV detection wavelength 200 to 400 nm, optional 200 to 800 nm UV-Vis
Monitor wavelength with purity ratio 200 to 400 nm, optional
200 to 800 nm UV-Vis
Wavelength accuracy +/- 5 nm
Fraction accuracy +/- [2mL + (flow rate / 60)]
Power options Input voltage ranges from 100 to 240VAC, 50/60Hz, 2A maximum. Line cord is the disconnect device.
Line frequency 50/60Hz
Dimensions (W x D x H) 14 x 17 x 24 in
Weight 54 lb (24.5 kg)
