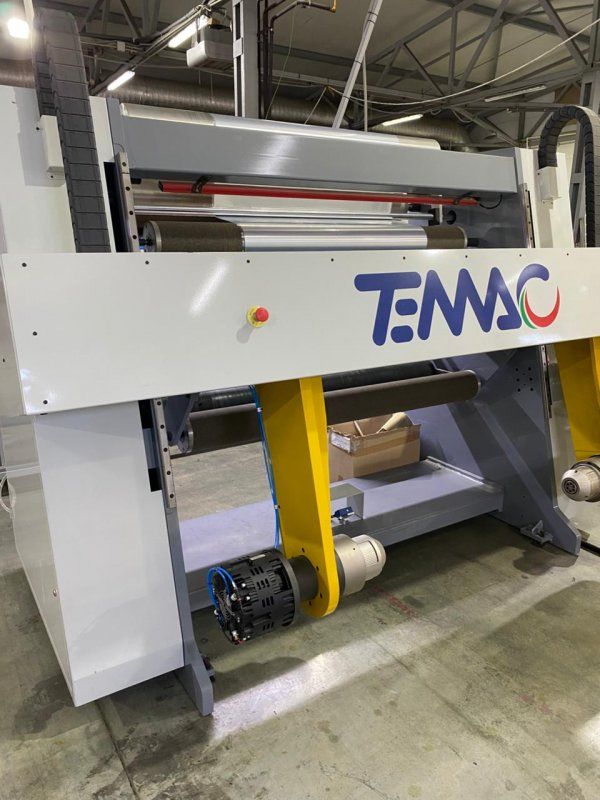

Temac SRP 162 1600 mm

Slitter rewinder
Working width (mm) 1600
Unwinder type Shaftless
Max diameter reel unwinder 1300
Rewinder type Double turret center driven
Max diameter reel rewinder 800
Min slit width 20mm
TOTAL OIL FREE core of 70 mm, 76,2 mm
Locking by pneumatic expandable spindles servo assisted by double solenoid valve Integrated electro mechanic system
managed by A.C. servo motor driven by full digital inverter for the VERTICAL mother roll lifting.
Fully digital FIFE D MAX2 edge and print guide system driven by microprocessor.
FIFE photo sensor “FIFE SE 26B” for edge or print line reader with automatic adjustable contrast
Totally automatic system for stopping the machine without loss of material passage (tracking)
with computerized management implemented via TOUCH PANEL PC
