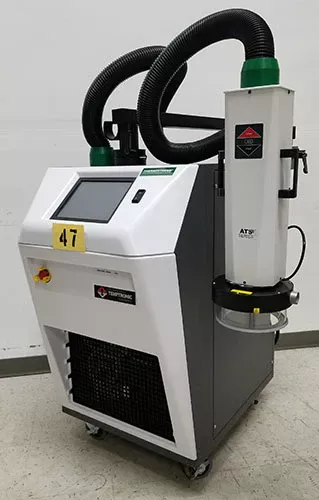

Temptronic ECO-810-M-4

• Temperature Range: −80°C to +225°C (60 Hz performance)
• Cooling Method: Mechanical refrigeration (no LN₂ or LCO₂ required)
• Transition Rate:
– −55°C to +125°C: approx. 10 seconds or less
– +125°C to −55°C: approx. 10 seconds or less
• System Airflow Output: 4 to 18 SCFM (1.9 to 8.5 L/s), continuous
• Refrigerants: HCFC- and CFC-free, non-toxic, non-flammable
• Serviceability: Auto-diagnostics with field-replaceable modules
• Over-Temperature Protection:
– Settable high and low air temperature limits
– Factory set at +230°C
• Compliance:
– CE
– RoHS
– EU 517/2014 (
