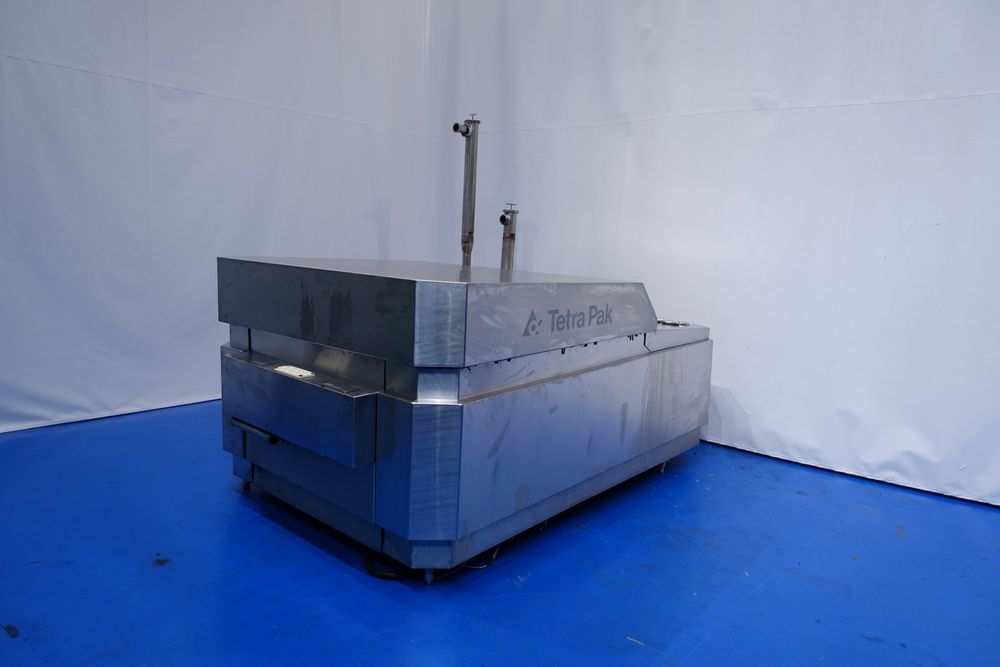

Tetra Pak Tetra Alex 30

Capacity 13.000 liter per hour
High pressure homogeniser.
2 stages with hydraulic pressure control. Cone valves.
3 Pistons, piston diameter: 63 mm and stroke: 135 mm.
Stainless steel cladded. Connections: 2x 2,5" SMS.
Current motor power: 110 kW and maximum pressure
in current confirguration with this motor 200 bar.
No control panel. Pressure transmitter direct on manomater
for reading homogenization pressure (analogue pressure indication).
Flowswitch (pneumatic) on cooling water.
2x Pulsation demper on in-/ and outlet. 2 Side inlet.
Remote pressure control. Documentation (spare parts list) available.
Total dimensions: 285x215x240 (lxwxh) cm - weight: 3.780 kg.
