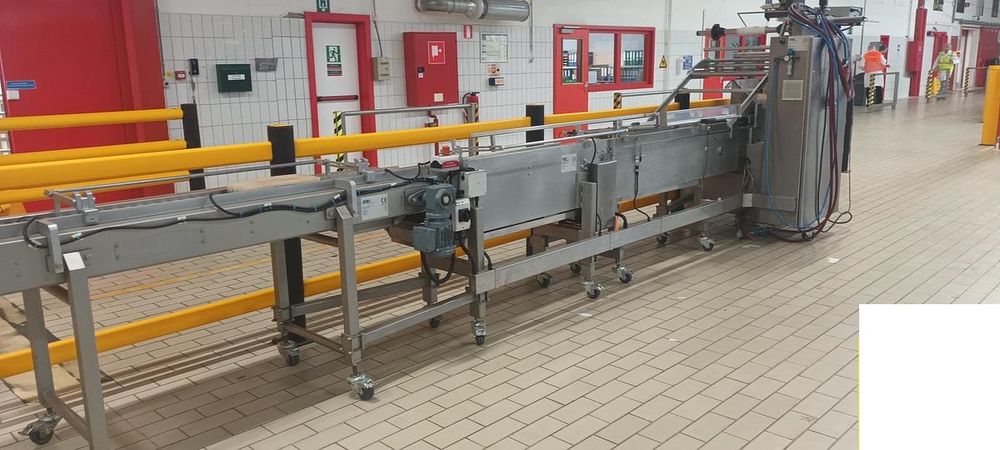

Tevopharm Pack-6 Flowpack Wrapper
EUROPE (Western and Northern)
Built by ENTREC (Belgium) in Year 2011
Their Model Number Enpack-6-L
3Phase, 400Volts, 50Hz
1-Up Knife Head,
This machine was built for big chocolate tablets.
1 kg 241x112x38mm with capacity of 24ppm
2,5 kg 250x215x45mm with capacity of 16ppmm
5 kg 430x240x45mm with capacity of 8ppm
The Enpack-6 flow wrapper is a mechanical driven machine.
Servo driven 2-way spotcorrection on sealing table.
2nd set sealing rollers is heated.
Static pre-heating block between 1st and 2nd set of sealing rollers.
Water cooled top plates on sealing table.
Cross seal unit with CTC 159 (space between the two shafts = 110mm)
1 upper- and 1 lower sealing jaw, L=298mm, W=25mm, transvers profile (in running direction of foil).
Cut off length: max 499mm, min 100mm.
Flight bar transver unit in cross seal unit.
Max foil width = 650mm
Including also
an automatic in line infeed system.
COLLAMAT 8600 Promlabel Printer Unit
Mobile Machine on wheels
