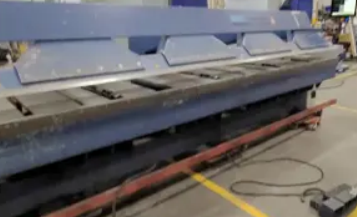

Thalmann THAKO 30-6.2M Press capacity: 14 gauge
Ref :
2808318-3-CP
Condition :
Used
Manufacturer :
Thalmann
Model :
THAKO 30-6.2M
Sheet Size :
Press capacity: 14 gauge
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Working length: 6200 mm (244.1")
Working depth: 1000 mm (39.37")
Backgauge range: 5–1000 mm
Working height: 900 mm
Bending beam width: 15/27 mm
Maximum bending angle: 143°
Bending beam speed: 143° in 5 sec
Clamp beam speed: 100 mm/sec
Backgauge speed: 200 mm/sec
Power: 18.5 kW
Voltage: 480V, 3 Phase, 60 Hz
Fuse protection: 60 A
Machine dimensions: 7300 × 1600 × 1800 mm
Machine weight: 6000 kg
Hydraulic CNC folder
Updated AMS HMI (September 2024)
Light curtain
Light curtain protectors
Spare parts
Operator manuals
Training and setup included
