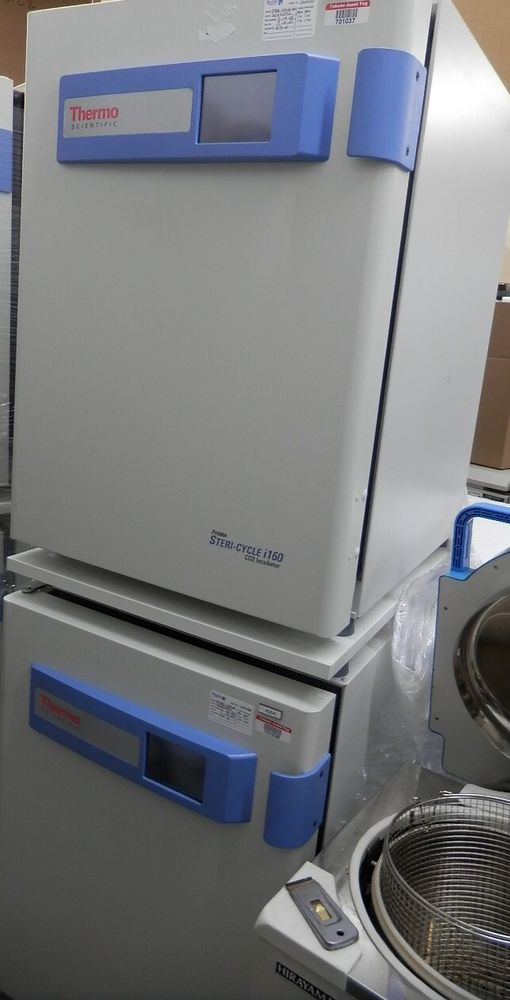

Thermo Forma Steri-Cycle i160 Double-Stack CO2 Incubator
AMERICA North (USA-Canada-Mexico)
Specifications :
Temperature Range:Ambient +3°C to 55°C
Temperature Uniformity:± 0.3°C at 37°C
Temperature Stability:± 0.1°C at 37°C
CO2 Range:1 to 20%
CO2 Control Deviation:± 0.1%
CO2 Accuracy:± 0.3%
CO2 Sensor Type:TC
Required Gas Pressure:Minimum of 0.8 bar to maximum of 1 bar (12 to 15 PSI)
Relative Humidity:> 93% at 37°C
Volume:5.8 cu ft. (165L) [Per Unit]
Sterilization Cycle Temperature:180°C on all internal surfaces
Sterilization Cycle Duration:Under 12 hours
Access Port Diameter:1.6 in. (42 mm)
Data Outputs:Remote alarm contacts and USB
Shelf Dimensions (W x D):16.7 x 18.3 in. (42.3 x 46.5 cm)
Internal Dimensions (W x H x D):18.5 x 23.9 x 22.7 in. (47 x 60.7 x 57.6 cm) [Per Unit]
External Dimensions (W x H x D):25.1 x 35.4 x 34.6 in. (63.7 x 90 x 88 cm) [Per Unit]
Weight:183 lb. (83 kg.) [Per Unit]
Electrical Requirements:120V, 50/60 Hz, 8.3A, 1000W [Per Unit]
