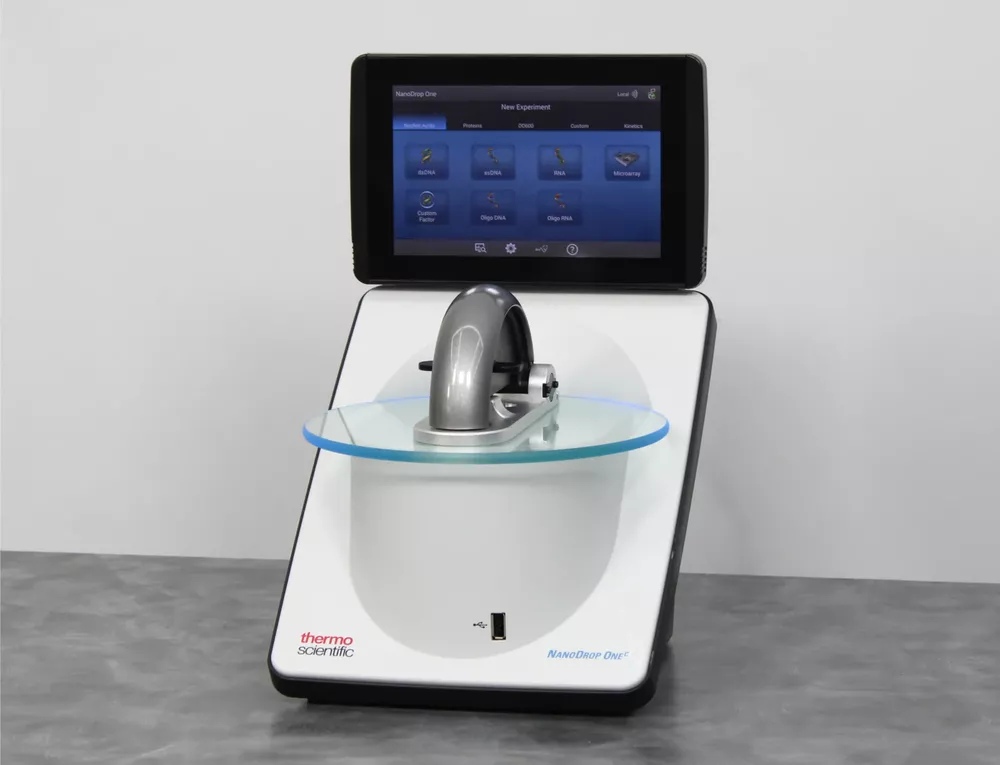

Thermo Scientific NanoDrop OneC

Microvolume UV Vis Spectrophotometer

Compatibility DYMO LabelWriter 450 printer, Bluetooth keyboard, mouse and barcode reader
Concentration dsDNA: Pedestal: 27,500 ng/μL
BSA (IgG): Pedestal: 820 (400) mg/mL
Connections Three USB-A ports, Ethernet, Bluetooth™ and Wi-Fi
(Only available on instruments with Wi-Fi/Bluetooth support)
Detection range dsDNA: Pedestal: 2.0 ng/μL, Cuvette: 0.2 ng/μL,
BSA (IgG): Pedestal: 0.06 (0.03) mg/mL, Cuvette: 0.006 (0.003) mg/mL
Keypad Built-in touchscreen, multipoint capacitive touch
Measurement time 8 seconds
Pathlength 0.030 to 1.0 mm (auto-ranging)
Photometric accuracy 3% at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25°C)
Photometric range 10 mm equivalent: Pedestal: 0–550 A; Cuvette: 0–1.5 A
Processor Android
Repeatability Typical: 0.002 A (1.0 mm path) or 1%CV, whichever is greater (SD of 10 individual measurements at 0.97 A)
Sample temperature Temperature control (cuvette only) 37°C
Sample volume Minimum 1 µL
Wavelength accuracy ±1 nm
Detector type 2048-element CMOS Linear Image Sensor
Light source Xenon Flash
Spectral bandwidth ≤1.8 nm (FWHM at Hg 254 nm)
Wavelength range 190 to 850 nm
System requirements Windows 8.1 and 10, 64 bit
Display 7 in. High Definition Color Display, 1280x800 pixels
Languages English, French, German, Spanish, Polish, Chinese, Japanese, Korean
For use with (application) Nucleic Acid A260, A260/A280, A260/A230 and Labeled Nucleic Acids;, Protein A280 and A205, Protein Pierce 660, Protein Bradford, Protein BCA, Protein Lowry, Labeled Proteins, OD600, Kinetics, UV-Vis, and Custom Methods
Power input 12V DC, 3.5A max
Power consumption Operating: 12 to 18W; Standby: 5W
Dimensions (W x D x H) 8 x 10 x 12.7 in (20 x 25.4 x 32.3 cm)
Weight 7.9 lb (3.6 kg)
