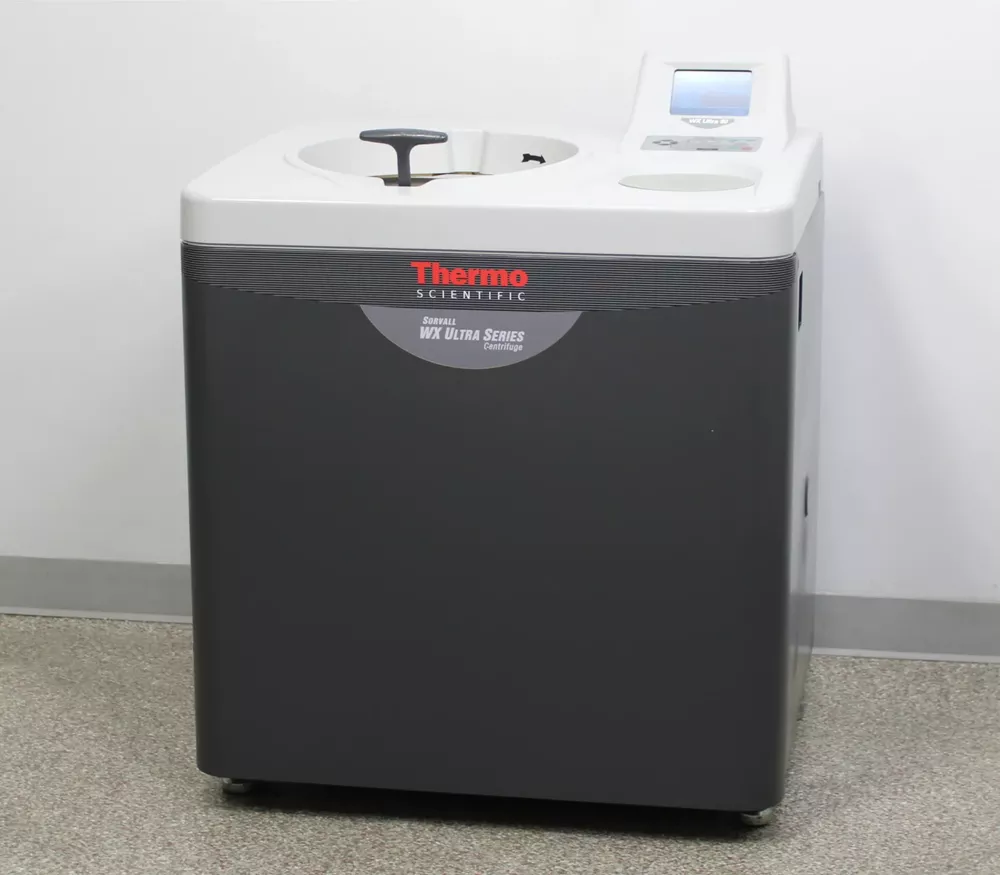

Thermo Scientific Sorvall WX Ultra 80 Series Refrigerated Floor Ultracentrifuge

Maximum speed
80,000 rpm

Maximum RCF
602,644 x g (T-880)

Speed control accuracy
±10 rpm (1,000 rpm to maximum speed)

Acceleration/Deceleration control
About 5 minutes from 0 to 100,000 rpm or vice versa

Rotor Temperature Control/Display Accuracy
±0.5°C set temperature is from 0°C to 40°C

Set speed
1,000 rpm to maximum speed in increments of 100 rpm

Vacuum system
Oil rotary vacuum pump and oil diffusion pump combined
Ultimate vacuum: below 0.01Torr (1.33 Pa)
Cooling method

Thermo-module cooling (CFC-free)
Noise level


53 db (A scale) (measured 1m in front of the instrument at the set speed of the rotor)

Maximum heat dissipation into room
1kW/hr

User interaction means
Color LCD (color-256), touch panel, and keyboard

Interface
RS232C X 1CH

Power Rating
Single phase 50/60 Hz
208,220 Vac+/-10%, 20A maximum (normally 8A)
230,240 Vac+/-10%, 16A maximum (normally 7A)

Dimensions (W x D x H)
31.1 x 27.2 x 39.4 in (79 x 69 x 100 cm)

Weight
881.8 lb (400 kg)
