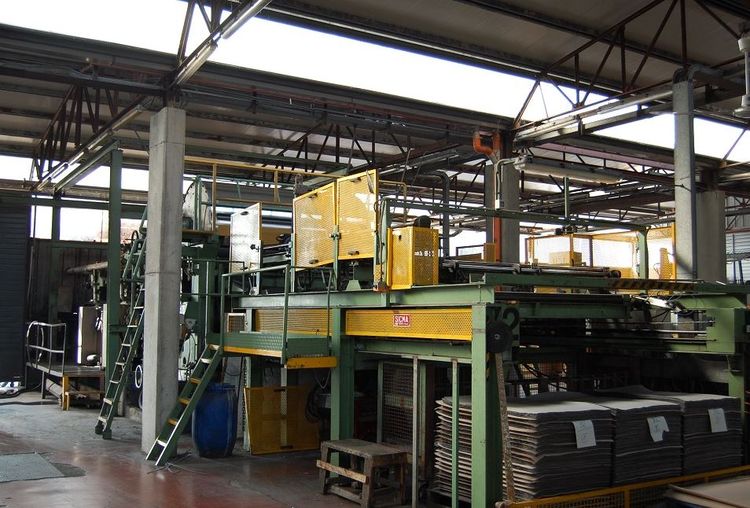

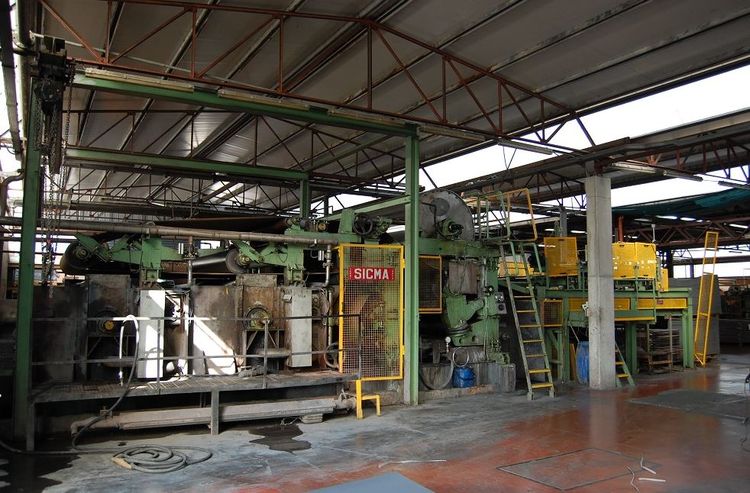

Sicma Thick board paper machine for up to 3600 gsm board, still installed, deal price! 2700 mm 700-3600 gsm 16 tpd

Grammage: 700-3600 gsm
Width 2700 mm
Capacity: about 16 Tpd

The plant produces:
Cardboard for converters (to make containers for files) 80x113
Cardboard for models format 90x240 or 90x120
Cardboard for shoes format 142x104
Min. Grammage 700 gr m2
Max. Grammage 3000 gr m2

They do not have a flow chart, the machine was modified internally several times. If needed we can entrust this work to some engineer after the machine has been sold.

Line composed of:
-2 stainless steel pulpers (12 m2 each), and stainless steel tanks
-2 conical refiner (overhauled)
- two forming drums
-Vibrating screen
-pumps
-hydraulic press

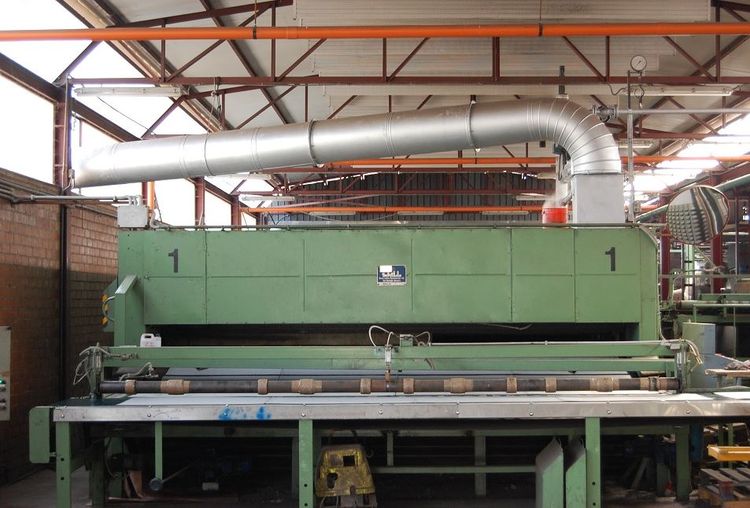

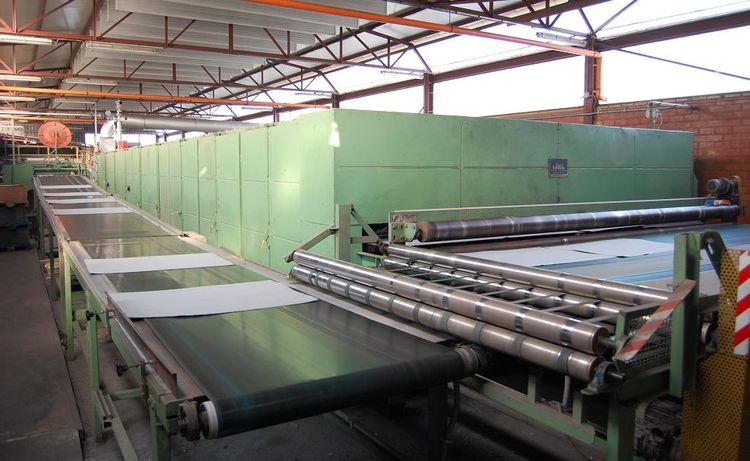

-Schild Oven
-calenders
-boiler
-automatic packing machine
Machine still installed, stopped

Measures and some data about the thickboard paper machine :
Total length of the board machine only is 17 m, including the vibrating screen, total width 3.30 m
Measures of the Cylinder: mm 2600 width, mm 4600 circumference

total plant area 1.000 sqm
The approximate room required for the plant is about 1000 m2( sqm)
