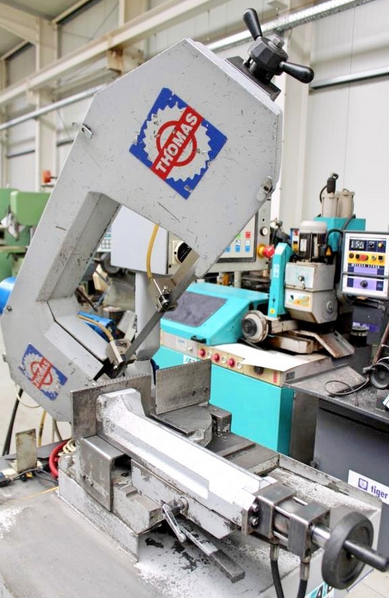

Thomas S.TRAD 301 SO DIGIT Band Saw SemiAutomatic

THOMAS S.TRAD 301 SO DIGIT
Year: 2009

cutting diameter: 255 mm
saw band length: 2750 x 27 x 0.9 mm
capacity 90 degrees (flat): 300 x 200 mm
capacity 45 degrees (round): 160 mm
capacity 45 degrees (flat): 170 x 120 mm
capacity 60 degrees (round): 110 mm
capacity 60 degrees (flat): 110 x 150 mm
table height: 900 mm
Control: conventional
cutting speed: 36 m/min
clamping range: 305 mm
total power requirement: 1.5 kW
weight: 440 kg
dimensions (L x W x H): 2000 x 1200 x 1950 mm

Electro-hydraulic metal band saw
Miter adjustment 45° right / 60° left
Manual saw cut with manual lowering
Hand switch on the saw frame for blade on/off
Electro-hydraulic material clamping
Clamping close/open switch
Handwheel for vise adjustment
Handwheel for manual saw blade tensioning
Coolant system
Emergency stop button at the front
Operating instructions (English)
