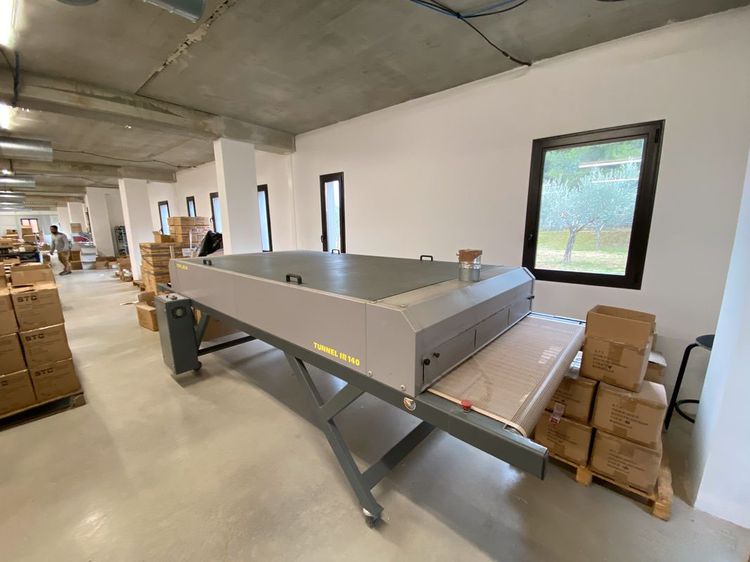

Tiflex IR 140 infrared drying tunnel

Ref : 2367603-1-AW
Condition : Used
Manufacturer : Tiflex
Model : IR 140
Width : -
Short Description : infrared drying tunnel
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Designed to cure water-based inks and plastisols used in the textile industry.
It can also be used with most solvent-based inks (epoxy, polyurethane, glycero, etc.)
and printed on all supports resistant to I.R. radiation (thermosets, metals, etc.).

Characteristics :
- Conveyor belt in heat-resistant Teflon glass (250 ° C).
- Adjustments of parallelism and belt tension using a mechanical lifting bar.
- Retractable shutters allowing the passage of thick supports, such as caps.

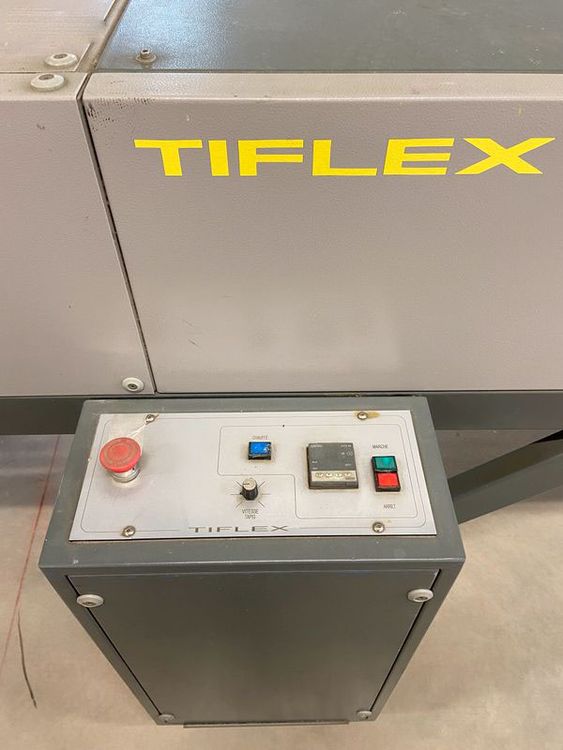

- Drying zone controlled by a switch, controlled by a temperature regulator with digital display.
- Mechanically bolted metal base equipped with 4 castors for easy movement.
- Width: 140 cm
- Length: 422 cm
- Height of the mat on the ground: 82 cm
- Weight: 550 kg
- Heating: 21 radiant elements 600w
- Power: 13 kW
- Intensity in 400 v three-phase mode: 19 A
- Belt speed: 0.4 to 6.5 meter / minute
- Noise level in operation: 69 decibels maximum
