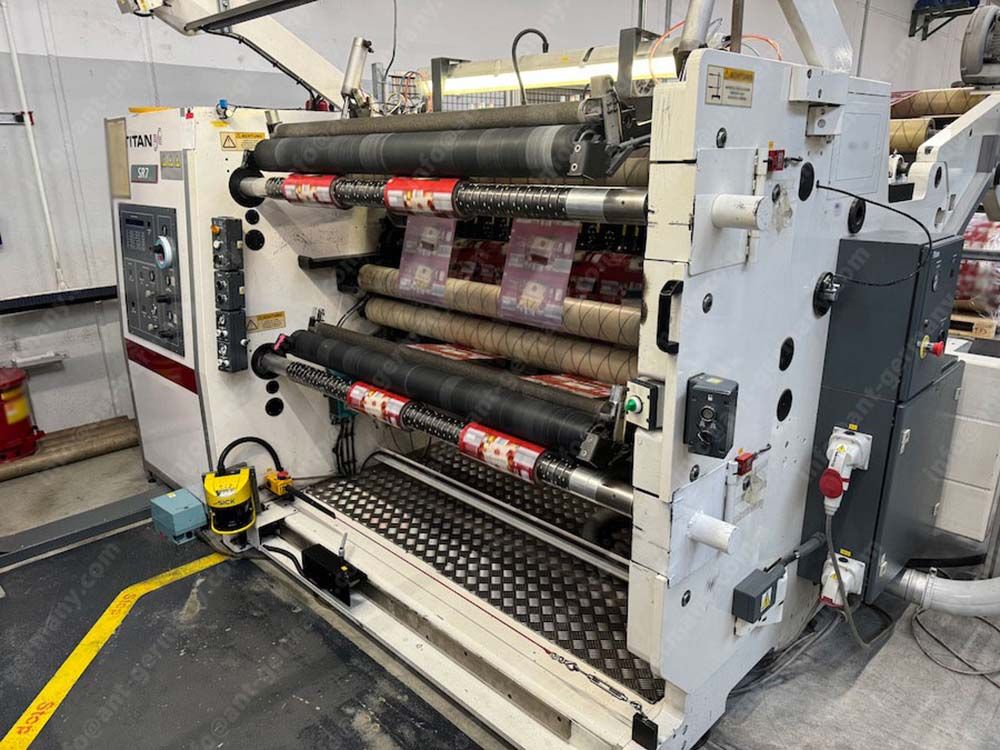

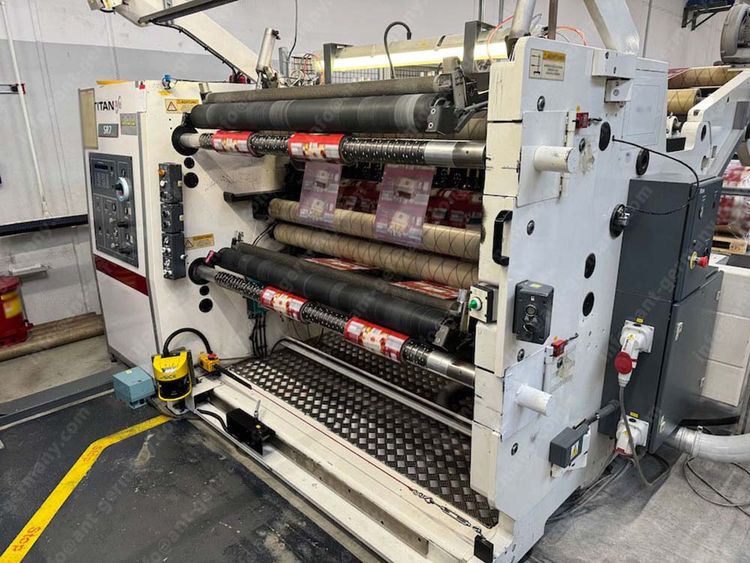

Titan SR7 1400 mm

Automatic slitter rewinder
Max width:1400 mm
Machine speed:600m/min
Material width:1400 mm

Max. reel diameter unwinder:1100 mm
Rewinder type:double shaft
Max reel diameter rewinder:610 mm
Max. unwinding tension:785N
Max. contact pressure:5,00Bar
Max. rewinding tension:500 N
Max. diferential tention:5,00 Bar
Max. linear tention:0,500 N/mm

Laser positioning
Pneumatic rotary knifes
Automatic knife positioning system
Friction rewinding shafts
Pneumatic tension roller
Web controlling systems
Turning rack for unloading of ready rolls
Materials: Films, Laminates, Paper, Aluminium
