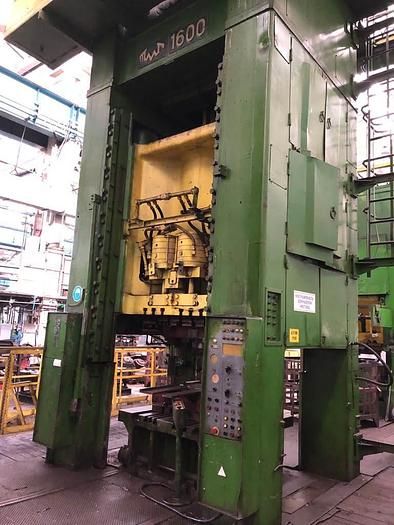

TMP TMP Voronezh K04 150 242 1600T
EUROPE (Western and Northern)
TMP Voronezh K04 150 242,1600T
Year 1988
Maximum force 1600 tons
Slider stroke length 400 mm
Table size 1650x1650 mm
Number of single turn-on 12-16
Press weight 140 tons
Description
Maximum force: 1600 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 16
Number of single turn-on: 12
The closed height: 870 mm
Adjustment: 220 mm
Under-forginig plate:
-From left to right: 1600 mm
-From front to rear: 1600 mm
-Thickness: 650 mm
Slider overall dimensions: 1600x1600 mm
Aperture in a table: 1000x1000 mm
window dimensions in cheeks: 1650x1650 mm
Course of a rigid pusher in a slider: 100 mm
Force of a rigid pusher in a slider ton-force: 80
Main electric motor power: 110 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 71
Hydropneumatic pillow:
-Working course: 250 mm
-Force of pushing out ton-force: 25
-Force of a clip ton-force: 250
Press overall dimensions: 4670x4670x8110 mm
Press weight: 140 tons
