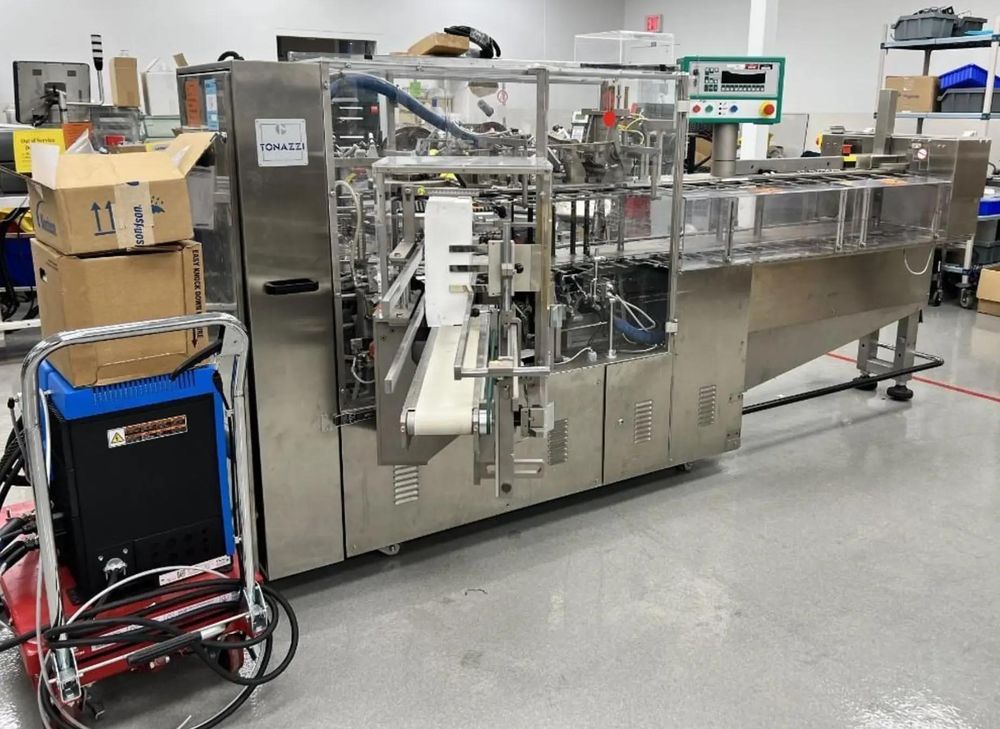

Tonazzi POLY 900, Case Packer

PRODUCTION CHARACTERISTICS
Mechanical speed: up to 90 beats/minute (production speed always depends on the feeding system and the product features, as well as on the product configuration and the accessories added to the standard machine)
Production: 80 cartons/minute

Product feed height: from 920 to 1120 mm (depending on the length of the tray)
Motorized carton magazine complete with minimum load sensor, at a height of 750-870 (approx.) and a length of 880 mm
Height unloading of packaged cartons: 870 mm (approx)

FORMAT DATA
A: Min 15 mm - Max 120 mm
B: Min 15 mm - Max 90 mm
H: Min 50 mm - Max 250 mm

Range of folded leaflets
Min: 15 x 100 mm
Max: 50 x 200 mm

ELECTRICAL CHARACTERISTICS
Nominal tension: 460 v
Current type: 3PH+T
Power absorption: 3 Kw
Frequency: 60 Hz
Controls voltage: 24 VDC

DIMENSIONS
Weight: 1,000 kg
