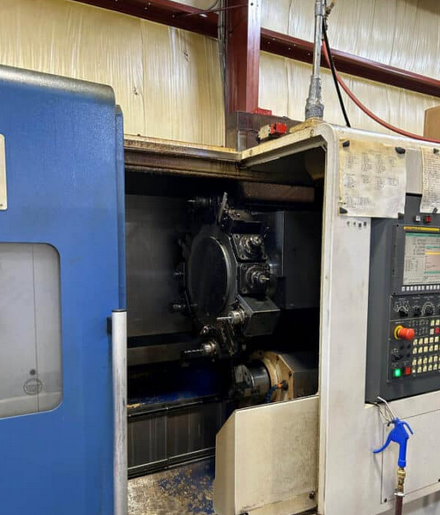

Tongtai Control Fanuc Series Oi-TD 3000 rpm TNL-100TLSB-Y 4 Axis

Traverses X-axis 7.87”
Traverses Z-axis 23.6”
Traverses B-axis 23.6”
C-axis positioning 0.001°
Control Fanuc Series Oi-TD
Tool presetter
Hydraulic chucks
Sub spindle
Milling
Y-axis
Tongtai BF-1500 barfeed
Chip conveyor
Bar capacity 2.0”
Max swing diameter 15.74”
Max swing over saddle 12.2”
Max turning diameter 8.26”
Max turning length 23.6”
Main spindle speed 3000 rpm
Main spindle bore 2.44”
Main spindle motor 12/10 HP
Sub spindle speed 6000 rpm
Sub spindle nose 2.5”
Sub spindle bore 1.37”
Sub spindle motor 7.5/5 HP
Milling speed 5000 rpm
Milling motor 5 HP
No. of turret stations 12
Machine dimensions 116” x 76” x 79”
Machine weight 12000 lbs
