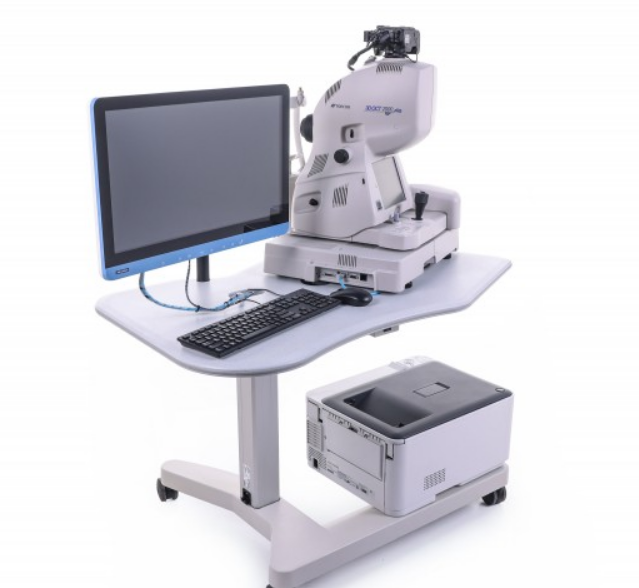

Topcon 3D OCT-2000 optical tomograph

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
Japanese production,
Power supply: 230 V,
Frequency: 50/60 Hz,
Power: 400 VA,
Software: 3D OCT – version 8.01,

TOPCON 3D-OCT 2000 combines a fundus camera generating high-quality color images
with a modern spectral optical tomograph (OCT),
High scanning speed (50,000 A-scans/s) and high resolution (5µm) enable the
creation of spatial images of the examined tissues, where even the smallest changes
can be observed,
Thanks to noise reduction algorithms and Infrared/3D tracking technology,
OCT sections perfectly illustrate the structure of the vitreous body and retina,
This device provides various tools for segmenting and extracting layers,
cropping, smoothing, and moving them,
The PinPoint Registration function allows the operator to mark the smallest details in
the area of ​​the taken fundus image and observe them in the OCT presentation on
2D and 3D scans or on thickness maps,
The built-in fundus camera with a high-quality digital camera (16.2 Mpx)
complements OCT diagnostics, allowing for detailed visualization of
the eye structure and revealing any pathological changes,
Various analytical functions combined with color photography and 3D OCT
imaging enable imaging and analysis of the cornea and anterior segment of the eye,
The diagnostic tools are complemented by functions such as: distance measurement,
curvature measurement, and angle of permeation measurement,
TOPCON 3D OCT-2000 Technical Specifications:
Image angle: 45°,
Operating range: 40.7 mm (in fundus photography) and 63.7 mm
(in anterior segment photography),
Retinal camera: 45°: Ø 4.0 mm; smaller pupil diameter: Ø 3.3 mm or more,
Optical coherence tomography: Ø 2.5 mm or more,
Spot - 3D scan: 512×128 (128 horizontal scan lines consisting of 512 A-scans), 6×6 mm.,
Spot - radial scanning: 1024×6 or 12 (6 or 12 radial scanning lines consisting of
1024 A-scans), 6 mm.,
Plate - 3D Scanning: 512×128 (128 horizontal scan lines consisting of 512 A-scans),
6×6 mm.,
Plate - Circle Scan: ø3.4 mm, 1024 A-scans,
7-line raster: 4096 A-scans per B-scan, 6 mm.,
Scanning speed: 50,000 A scans per second,
Scanning range (fundus): 8.2×3 mm, 6×6 mm, 4.5×4.5 mm, 3×3 mm.,
Cornea: 6×6mm, 3×3mm.,
Lateral resolution:
