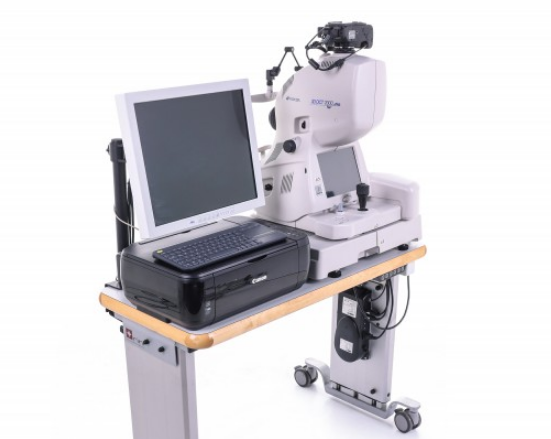

Topcon 3D OCT-2000

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
Japanese production, (2015),
Power supply: 230 V,
Frequency: 50/60 Hz,
Power: 200 VA (max. 400 VA),
Software: 3D OCT – version 8.43 (Polish language),
TOPCON software: 3.300,
TOPCON 3D-OCT 2000 combines a fundus camera generating high-quality color images with a modern spectral optical tomograph (OCT),
High scanning speed (50,000 A-scans/s) and high resolution (5µm) enable the creation of spatial images of the examined tissues, where even the smallest changes can be observed,
Thanks to noise reduction algorithms and Infrared/3D tracking technology, OCT sections perfectly illustrate the structure of the vitreous body and retina,
This device provides various tools for segmenting and extracting layers, cropping, smoothing, and moving them,
The PinPoint Registration function allows the operator to mark the smallest details in the area of ​​the taken fundus image and observe them in the OCT presentation on 2D and 3D scans or on thickness maps,
The built-in fundus camera with a high-quality digital camera (16.2 Mpx) complements OCT diagnostics, allowing for detailed visualization of the eye structure and revealing any pathological changes,
Various analytical functions combined with color photography and 3D OCT imaging enable imaging and analysis of the cornea and anterior segment of the eye,
The diagnostic tools are complemented by functions such as: distance measurement, curvature measurement, and angle of permeation measurement,

TOPCON 3D OCT-2000 Technical Specifications:
Image angle: 45°,
Operating range: 40.7 mm (in fundus photography) and 63.7 mm (in anterior segment photography),
Retinal camera: 45°: Ø 4.0 mm; smaller pupil diameter: Ø 3.3 mm or more,
Optical coherence tomography: Ø 2.5 mm or more,
Spot - 3D scan: 512×128 (128 horizontal scan lines consisting of 512 A-scans), 6×6 mm.,
Spot - radial scanning: 1024×6 or 12 (6 or 12 radial scanning lines consisting of 1024 A-scans), 6 mm.,
Plate - 3D Scanning: 512×128 (128 horizontal scan lines consisting of 512 A-scans), 6×6 mm.,
Plate - Circle Scan: ø3.4 mm, 1024 A-scans,
7-line raster: 4096 A-scans per B-scan, 6 mm.,
Scanning speed: 50,000 A scans per second,
Scanning range (fundus): 8.2×3 mm, 6×6 mm, 4.5×4.5 mm, 3×3 mm.,
Cornea: 6×6mm, 3×3mm.,
Lateral resolution:
