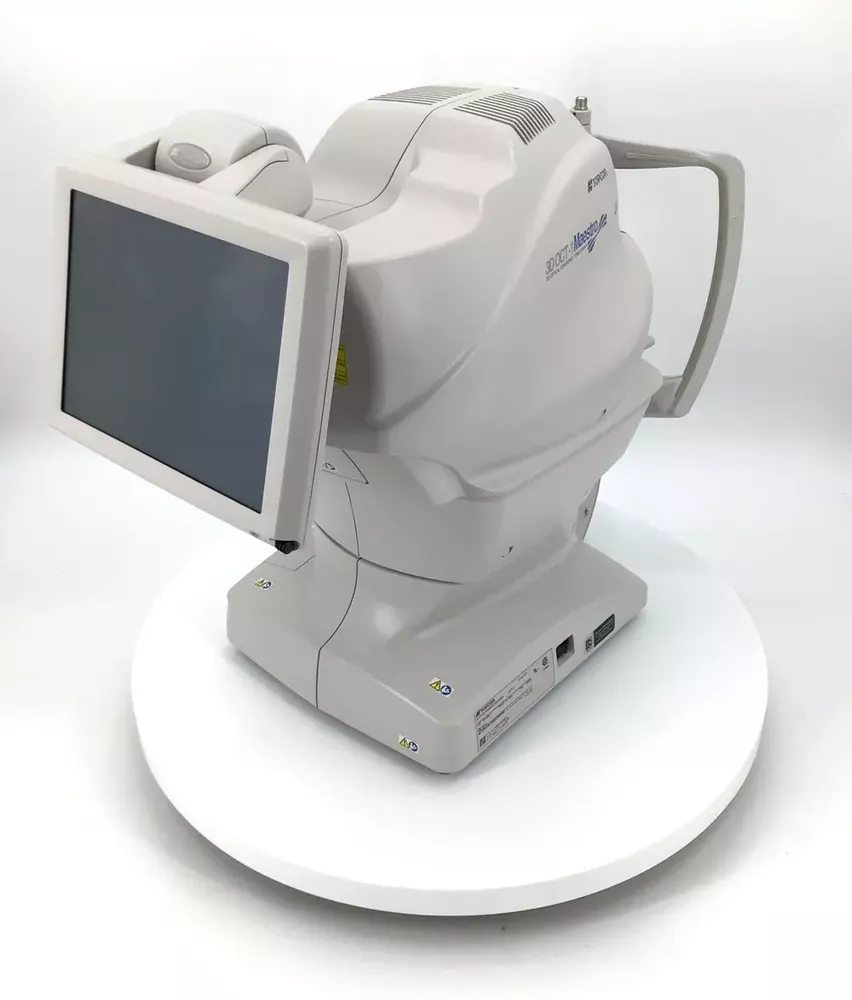

Topcon Maestro 1 OCT

The Topcon 3D OCT-1 Maestro from provides ophthalmologists with
an advanced automated optical coherence tomography system and
fundus camera for diagnosing optical pathologies.
The full color fundus camera offers both 2D and 3D images in
high resolution, while the Spectral Domain OCT provides 50,000
A-scans per second.

The Topcon 3D OCT-1 Maestro also features a number of
fundus image utilities, including Mosaic, stereo, patient education,
measurement, and more. With automatic disc segmentation and
auto-centering capabilities, as well as automatic layer
segmentation analysis, this OCT enables precise diagnostics and detailed interactive reports. The instrument is compact and
fully networkable for seamless integration within
any size ophthalmology practice.

FEATURES:
Fully automated operation with a simple finger touch
Rich analysis and report functions
Modular system: expandable modules & features
Superb OCT technology
True colour fundus photography
Compact & space saving design
EN VIEW OCT Imaging
Network and DICOM connectivity

SPECIFICATIONS
Observation & Photography of Fundus Image
Scan Mode: Color, Red-free (display digital red-free)
Picture Angle: 45°/30° or equivalent (digital zoom)
Operating Distance
8 mm (in fundus photography)
6 mm (in anterior segment photography)
Photographable Diameter of Pupil
45°: Ø4.0 mm or more
Small pupil diameter: Ø3.3 mm or more
Scan Range
On fundus
Horizontal direction 3 – 12 mm
Vertical direction 3 – 9 mm
On cornea
Horizontal direction 3 – 6 mm
Vertical direction 3 – 6 mm
Scan Speed: 50,000 A-Scans per second
Lateral Resolution: 20 µm
In-depth Resolution:6 µm
Photographable Diameter of Pupil: Ø2.5 mm or more
Internal Fixation Target: Dot matrix type organic EL
(The display position can be changed and adjusted.
The presenting method can be changed.)
Electric Rating
Source Voltage: AC 100 – 240V
Power Input: 70 – 150VA
Frequency: 50HZ – 60HZ
Dimensions & Weight
Dimensions: 1” – 17.4” (W) x 18.5” – 26.3” (D) x 20.4” – 28.4” (H)
Weight: 3 lbs.
