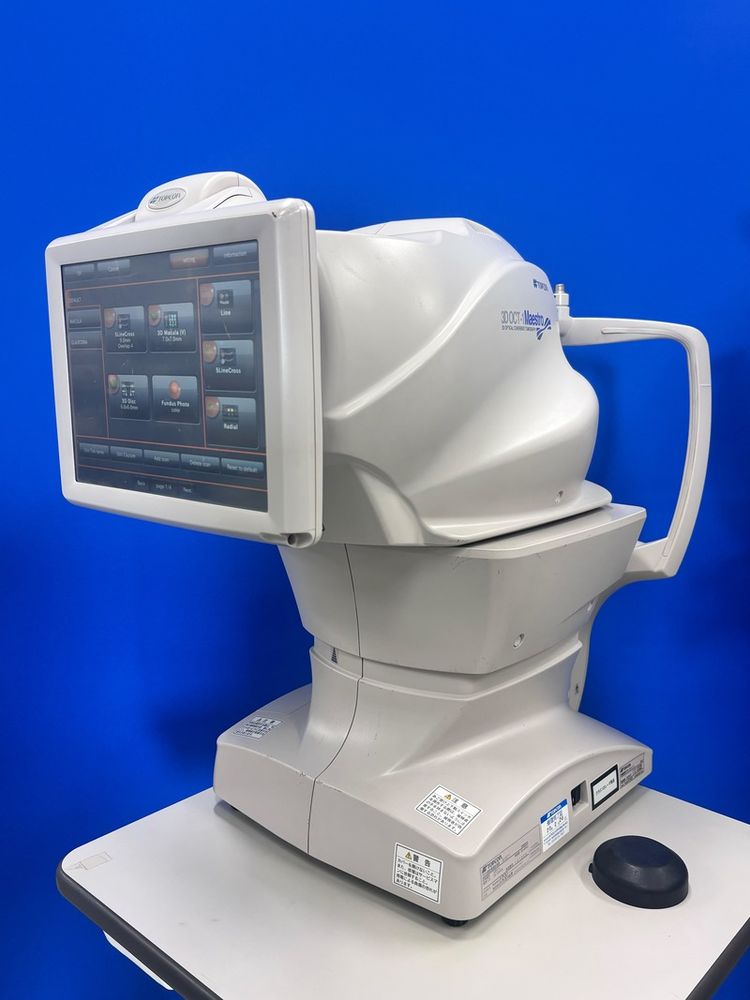

Topcon Maestro 1 OCT

OCT fundus tomography images and color/red-free (digital)
fundus images can be captured with a single unit.
Automatic alignment allows for easy and fast image capture.
A basic analysis application is included, which is useful for
diagnosing glaucoma and macular disease. (Normative database included)
Equipped with a touch panel display and a GUI design optimized for
the workflow used, it enables easy image capture.
The screen can be flexibly rotated, allowing imaging operations to
be performed from various positions and providing better patient support during
imaging. It also provides greater freedom in installation location.

Specifications & Options
Scanning range (at fundus): Horizontal 3 to 12 mm, Vertical 3 to 9 mm,
Scan pattern: 3D scanning (horizontal/vertical),
Linear scanning (Line scan/Cross scan/Radial scan),
Scanning speed: 50,000 A-scans per second,
Imageable pupil diameter: φ2.5 mm or more

Configuration
Body dimensions: 307-442 mm (Width) x 472-668 mm (Depth) x 518-722 mm (Height), Weight: 21.0 kg

Conditions
OCT unit without PC.
