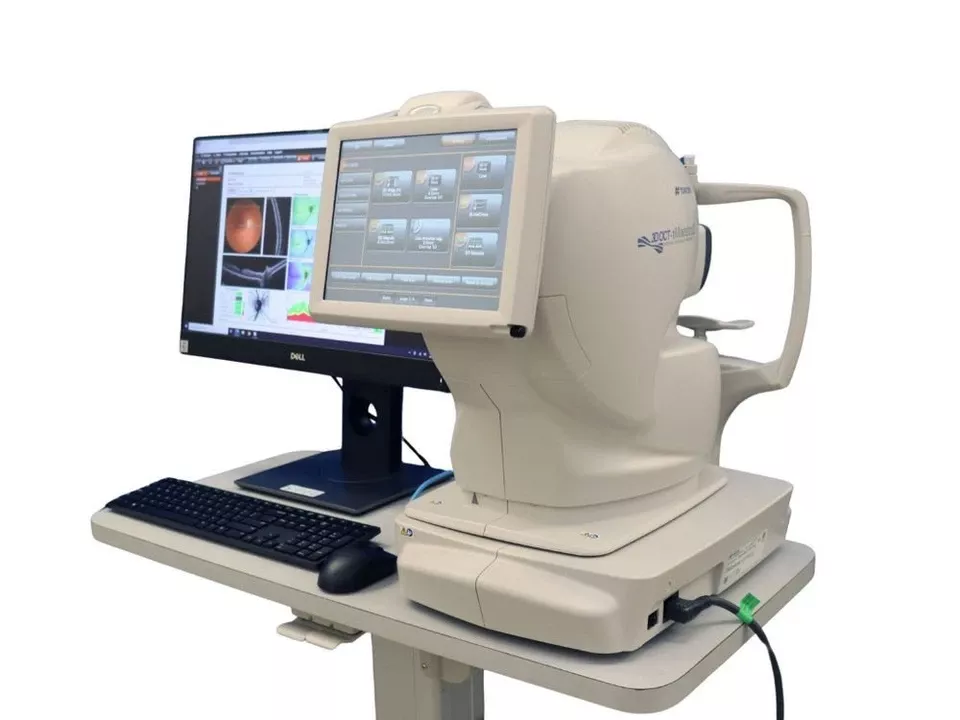

Topcon Maestro 2 OCT

The Topcon Maestro 2 is one of the most advanced
ophthalmic imaging systems, combining robotic OCT and
true-color fundus photography (24-bit) in a single exam –
all with just one touch. Compact, automated, and user-friendly,
it is ideal for practices of any size seeking accuracy and efficiency in diagnosis.

Key Features
Full automation: auto-alignment, auto-focus,
and auto-capture with just one touch.
360° rotating touchscreen for ergonomics and ease of use.
True color fundus imaging, captured simultaneously with OCT.
Wide 12 × 9 mm scan: captures both the macula and
optic disc in a single shot.
Hood Glaucoma Report: detailed RNFL and GCL+/++ analysis with
probability maps.
Follow-up tracking: ensures consistent scan locations across patient visits.
3D segmentation & reference database: comprehensive analysis of retina,
RNFL, and ganglion cell layers.
Anterior Segment OCT (optional): measures cornea, anterior chamber,
angles, and corneal thickness.

Technical Specifications
OCT Scan Area: up to 12 × 9 mm (Widefield)
Scan Speed: 50,000 A-scans per second
Optical Resolution: ≤ 20 µm (lateral) / ≤ 6 µm (axial)
Dimensions / Weight: ~340–480 (W) × 543–680 (D) × 530–735 (H) mm; ~25 kg
Power Supply: AC 100–240 V; power consumption 70–150 VA
