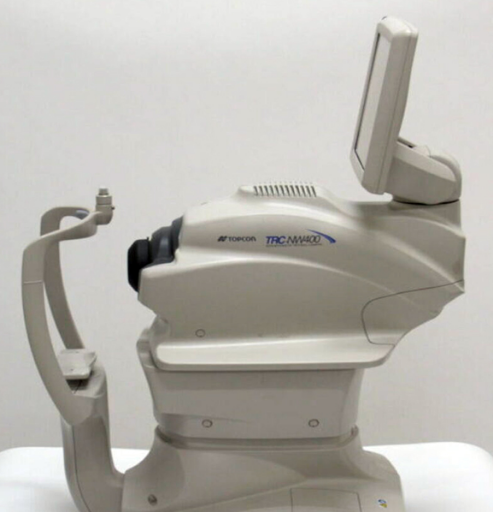

Topcon TRC-NW400 Non Mydriatic Retinal Camera

Used condition like new, Excellent and ready to work
Come with warranty 12 month

Features:
Fully automated operation and automatic transfer from eye to eye.
10″ touch screen monitor for instrument control and image display.
Auto stereo feature does not require manual movement of the optical head.
Anterior segment photography.
9 internal LED fixation targets.
DICOM compliant.
Can work as a standalone device or in combination with capture software.

Specifications:
Observation and Photography of the Fundus
Angle of coverage: 45°/30° (digital zoom)
Working distance: 34.8mm (in fundus photography)
Pupil diameter for photography: φ 4.0mm or more Small pupil diameter: φ3.3mm or more
Fixation target
Internal fixation target:
Dot matrix type organic LED display.
The display position can be changed and adjusted.
The displaying method can be changed.
Peripheral fixation target:
This is displayed according to the internal fixation target displayed position.
External fixation target (EF-2)

Patient Diopter Correction Range
Without the diopter compensation lens: -13D to +12D.
With concave compensation lens: -33D to -12D.
With convex compensation lens: +11D to +40D.

Power Source
Source voltage: AC100-240V.
Power input: 120VA Frequency 50-60Hz.

Dimensions and Weight
Dimensions: 272-383mm (W) x 464-660mm (D) x 512-700mm (H)
Weight: 18kg.
