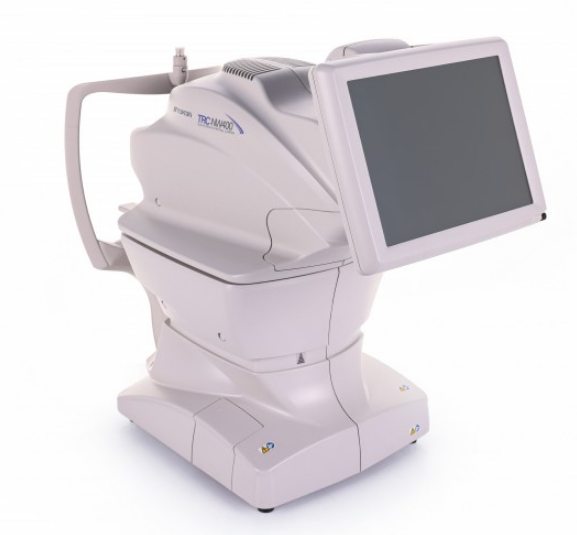

Topcon TRC-NW400

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
Japanese production, (2018),
Power supply: 230V,
Frequency: 50/60 Hz,
Power: 120VA,
Possibility to choose menu in: English, Japanese,

The TRC-NW400 is an automated color fundus camera.
Equipped with a 270-degree rotating touch panel monitor,
the operator can quickly and easily acquire an image with just a touch of a finger,

Characteristics:
True color fundus imaging,
Robotic technology – fully automated focusing and capturing of
high-resolution color fundus images,
Small pupil imaging – acquire images with pupils as small as 3.3 mm,

Full automatic mode:
In automatic mode, alignment, focusing, shooting and movement between the right and
left eyes are performed automatically. No specialist training is required to operate the
device. Simply touch the screen to select the mode, touch the center of the pupil and
press the "Capture START" button. The TRC-NW400 provides consistent results regardless of the operator's experience,

Manual operation mode:
In manual mode, the operator can control the fundus camera using the touch screen,
as if controlling it with a joystick. This is especially useful when the operator wants to
photograph a specific area of ​​the fundus. In manual mode, all camera movements are
controlled by the touch screen. The light level, flash intensity, diopter adjustment and
fixation points can also be set manually,

Space saving:
The TRC-NW400 features a rotating touchscreen monitor that allows the device to
be operated from virtually any angle. This allows the operator to be positioned in
front of, behind or to any side of the patient, providing optimum space savings.
The TRC-NW400 fundus camera can be conveniently operated when
positioned against a wall or in the corner of a room,

Low flash intensity:
To ensure patient comfort and adapt to patient requirements, a low-intensity flash of
4.0 Ws is standard, allowing for excellent images with low-intensity flash and
reduced patient discomfort,

Small pupil photography and zoom function:
Features such as small pupil aperture, digital zoom,
and masking support taking retinal photos with pupils of Φ3.3mm or larger,

Internal fixation point support:
The device has traditionally 3 fixation points (spot, target and center),
as well as 9 fixation points for peripheral imaging,

Specification:
Observation and photography of the fundus of the eye:
Image angle: 45° / 30° (digital zoom),
Working range: 34.8 mm,
Pupil diameter for photography:
Φ4.0 mm or more,
3.3 mm or larger (small pupil diameter),

Fixation point:
Internal fixation target:
Matrix type ELD display,
Possibility to change and adjust the display position,
Possibility to change the display method,

Peripheral fixation point:
Displayed according to the displayed position of the internal fixation target,

Patient diopter correction range:
Without diopter compensation lens: From -13D to +12D,
When using a concave compensating lens: From -33D to -12D,
When using a convex compensating lens: From +11D to +40D,

Included in the set:
English user manual (PDF),
Power cord,
Dimensions: 38 x 66 x 70 cm,
Weight: 18 KG,
It has a current inspection and is ready to work,
Issued Technical Passport (Service Report) valid for 12 months
