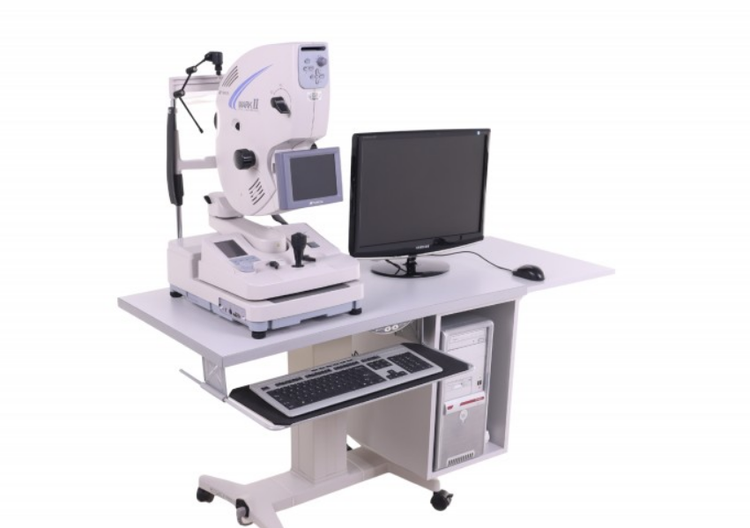

Topcon TRC-NW7SF MARK-II

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Actual product photos,
Made in Japan,
Power supply: 230 V,
Frequency: 50/60 Hz,
Power: 1500 VA,
Software: IMAGE NET – 3.8.0.,
The Topcon TRC-NW7SF Mark II combines dilated and
non-dilated fundus imaging capabilities in a single system,
combining mydriatic and non-mydriatic retinal imaging capabilities in a single system.
The Topcon TRC-NW7SF is designed to perform a wide range of procedures.
The TRC-NW7SF's fundus imaging capabilities include color, red-free,
and fluorescein angiography. Designed for ophthalmologists with versatile applications,
the TRC-NW7SF offers high-quality imaging.

The TRC-NW7SF also offers simple, ergonomic controls,
making the system extremely intuitive and easy to use.
The device is designed to capture retinal images, including:
Color images,
Red-free images,
Fluorescein angiography.

Features:
Medical-grade image sensor ensures accurate color reproduction.
Rotation and tilt movements enable accurate imaging of the peripheral retina.
Ability to capture images without pupil dilation
(starting from 3 mm – applies to color mode).
Intuitive operation thanks to its ergonomic design.
Integration with the EyeRoute system.

Technical specifications:
Photography types:
Color images,
with fluorescein angiography (FA),
with cobalt filter,
Red-free images,
IA.

Angle of coverage:
30° ø 4.0 mm or greater,
45° ø 4.5 mm or greater,
50° ø 5.5 mm or greater,
Patient Compensation Ranges:
Without compensating lens: -13D to +12D,
With "-" compensating lens: -33D to -12D,
With "+" compensating lens: -9D to +40D,

Fixation Types:
Internal:
Central 4-point examination,
Peripheral 8-point examination,
External articulating,
Easy Focus & Alignment (Focus and alignment are easily achieved by crossing the vertical lines with dots),
Built-in 6.5" LCD screen,
Working Range: 40.7mm,
Horizontal Rotation Range: Right and Left: 32.5°,
Base Movement Range: Forward and Backward 80 mm,
Right and Left 110 mm, Up 12 mm, Down 30 mm,
Up and down tilt angle: Up 15° / Down 10°,
Chin rest adjustment range: 60 mm,
Hassle-free connection to IMAGEnet,
Menu language: English,

Equipment:
PC computer station:
Software: WINDOWS XP,
Processor: INTEL PENTIUM E5200 2.50 GHz,
RAM: 2 GB,
HDD: 256 GB,
SAMSUNG 2233BW monitor,
Articulating fixation point,

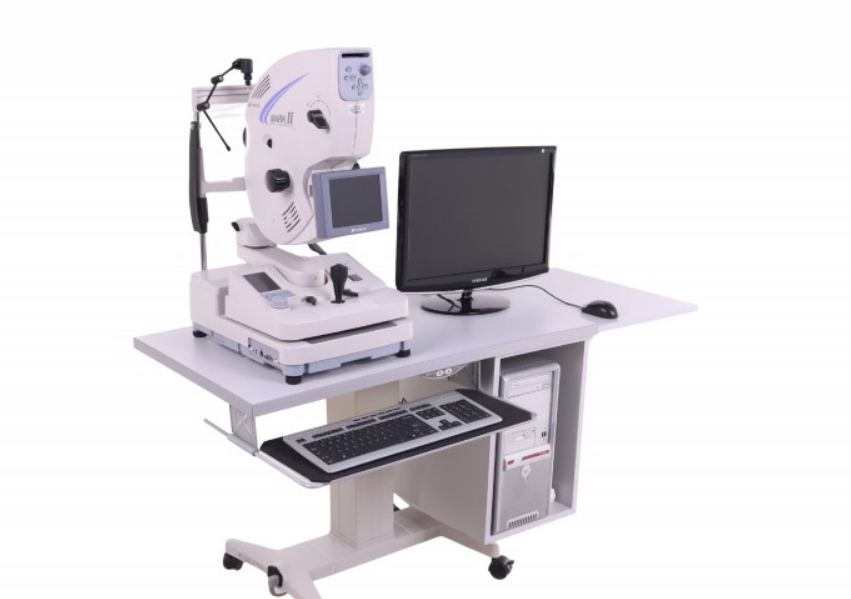

Equipment placed on a mobile table with electric height adjustment in
the range of: 70 – 88 cm,

Includes:
SAMSUNG 2233BW monitor,
PC computer station,
Wired keyboard and mouse,
Articulating fixation point fixation,
Total dimensions: 142 x 58 x 148 / 160 cm,
Weight: 100KG,
