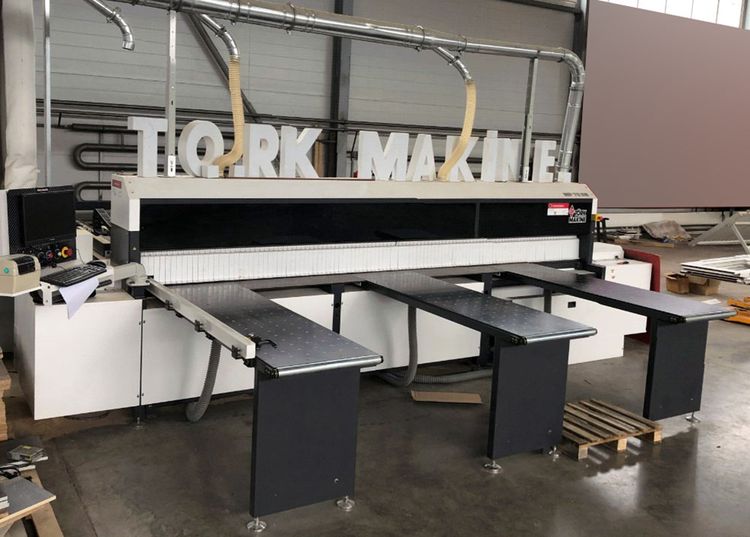

Tork MASTER PANEL 70RS

Max saw reach 75 mm
Working size 4300x4300 mm
carriage speed - 30-70 m/min
pusher speed - 25-50 m/min
8 grippers mounted on a pusher with a servo motor
3 air-cushioned work tables 2000x600 mm
automatic adjustment of the saw carriage speed depending on the stack height
one-piece saw carriage body
PC control of the machine with multilingual software (Russian)
Dimensions: 5950x7190x1820 mm

With built-in cutting optimization program and label printer

Programming
4 axes with pre-cut X, Y, Z and W
all axes are unlimited for input
label printing (installed)
real-time cycle simulation
optimization of cutting and cost calculation

Language and dimensions
multilingual programs (in Russian)
Metric measurements with an accuracy of 1/10 mm

Machine troubleshooting
The program warns the operator about a malfunction.
The malfunction is displayed on the screen as a 3D image of the vehicle with red dots indicating the fault location.
Clicking on a red dot displays a photo of the specific component with the malfunction.
With the 3D fault warning system, the operator can quickly locate and fix the fault.

Optimization program
Module for saving orders
Ability to access all the latest information on orders
Efficient and fast optimization in several variants
The process generates 6 different optimization schemes to select the best option, for example, for less waste or higher productivity, etc.
Unlimited input of dimensions of processed panels
Unlimited number of projects and measurements
Automatic resizing based on edge material thickness
Direct import of dimensions
You can enter panel sizes directly on the monitor or by adding an Excel table.
Cost calculation. You can calculate and print any data, including panel cost, waste, edging material amount, etc.
Ease of use. This easy-to-understand and user-friendly program can be installed on any computer.
Label Printing (Optional). With the Label Printing option, you can create a label and print it during the cutting cycle.

Information on the label:
- order information
- panel dimensions
- information about the edge
- name of the part
- information about the company
- information about the material
