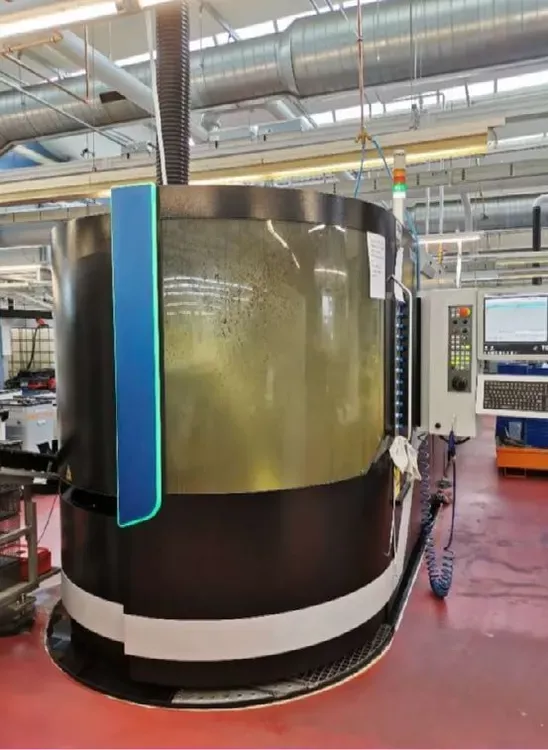

Tornos CNC CONTROL 8,000 RPM MULTISWISS 8X26 CNC Swiss Lathe 3 Axis

Max Workpiece Length: 65 mm
Max Remnant Length: 140 mm
Drum Switching Time: 0.48 sec.
Stroke of Spindle, Z Direction: 75 mm
Stroke of Counter Spindle, Z-Axis: 150 mm
X-Stroke of Cross Slides in Main Machining: 80 mm
X-Stroke of Cross Slides in Main Machining with Y-Axis: 55 mm
Y-Stroke of Cross Slides in Main Machining: 33 mm
Stroke of Cross Slides in Counter Operation, X-Axis: 170 mm
Z-Stroke of Cross Slides in Counter Operation: 150 mm
Bar Capacity: 8-26 mm
Number of Linear Axis: 18
Number of Y-Axes: 3
Number of Rotary Axes (C Axis): 8+1
Number of Cross Slides in Main Machining: 7+1 (cut)
Max Number of Tools: 31
Max Number of Tools in Counter Operation: 4
Max Number of Driven Tools in Counter Operation: 2
Spindle Hole Diameter: 26 mm
Max Spindle Speed: 8,000 RPM
Power of Spindles: 11 kW
Torque of Spindles: 17/24 Nm
Max Speed of Counter Spindles: 8,000 RPM
Power of Counter Spindle Motor: 11 kW
Torque of Counter Spindle Motor: 12.0/15.5 Nm
Spindle Cooling: With Oil
Cutting Oil Filtration: 50 µm
Cutting Oil Volume: 2000 l
Standard Cutting Oil Pump: Outlet Pressure 4.50 bar, Flow Rate 140 l/min
High Pressure Pump: Outlet Pressure 80 bar, Flow Rate 36 l/min
Max Length: 9000 mm
Max Width: 2260 mm
Max Height: 2160 mm
Weight: 15,000 kg
Installed Power: 140 kW
Numerical Control: Fanuc
Programming System: TB-DECO ADV

8-Spindle Machine
Cross Slide on All Layers
3 Y-Axes on Layers 4 / 5 / 6
Parts Pre-Drawing Device
2 Driven Tools
Counter Spindle
Backworking 1 Rigid / 1 Driven
2 80 Bar HD Pumps Additionally
Chip Conveyor Knoll
Automatic Bar Loading Magazine (Single Loader)
Machine Runs on Oil
