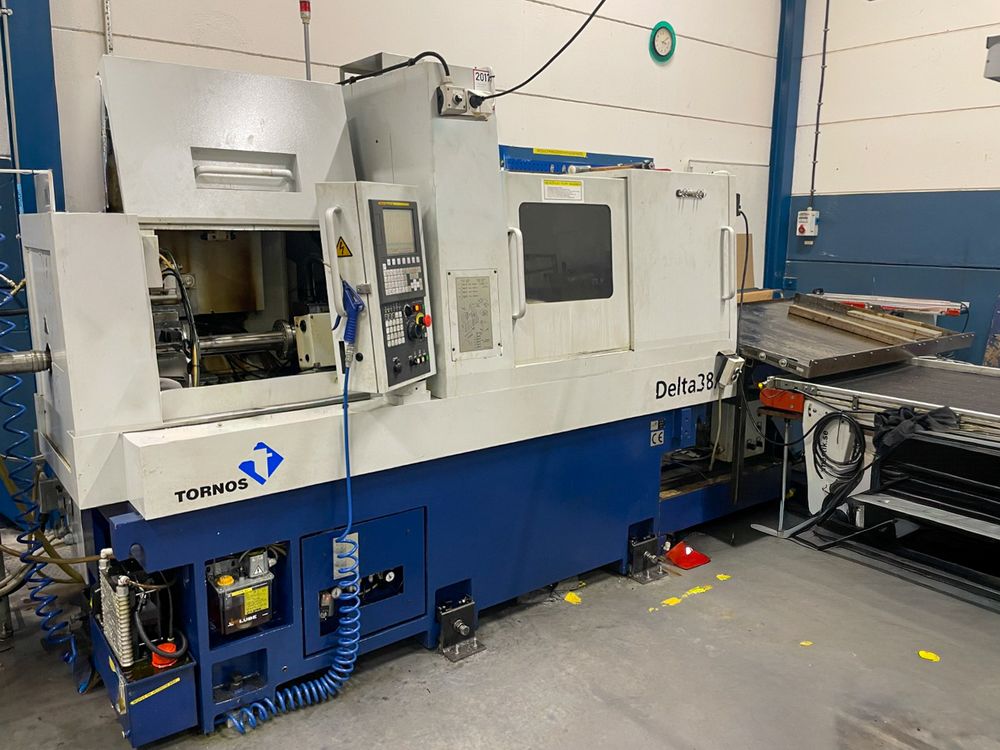

Tornos Fanuc 0i-TD 6000 rpm Swiss Type Delta 38/5 7 Axis

X-axis travel: 38 mm diameter capacity
Sub spindle max diameter: 38 mm
Main spindle bore: 38 mm

Main spindle speed range: 200–6000 rpm
Main spindle power: 7.5 / 11 kW

Sub spindle speed range: 200–7000 rpm
Sub spindle power: 3.7 / 5.5 kW
C-axis (sub spindle): 15°
C-axis (main spindle): 0.001°

Driven tools spindle speed: 200–5000 rpm (1 kW)

Control system: Fanuc 0i-TD
Axes: 5+2

Bar feeder: LNS Sprint 565
Tool positions: 31
Max rotary drilling capacity: 13 mm
Max tapping capacity (main spindle): M12

Cutting time: 7000 hours

Weight: 4600 kg
Length: 2800 mm
Width: 1600 mm
Height: 2000 mm
