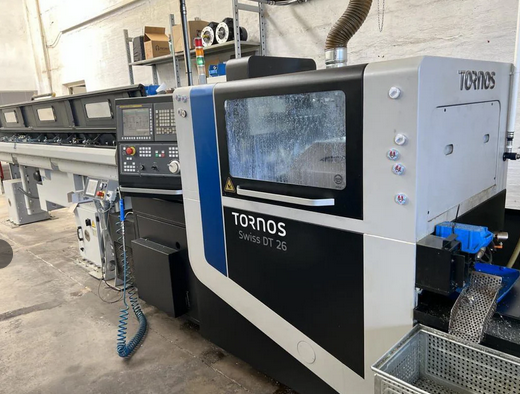

Tornos Fanuc Corporation Series 31i-Model B 10000 rpm SA DT 26/5 7 Axis

CNC automatic lathe
Control: Fanuc Corporation Series 31i-Model B
Number of axes: 5 + 2
Number of spindles: 2
Maximum workpiece length: 195 mm
Maximum bar diameter: 25.4 mm
Main spindle speed: 0–10000 rpm
Main spindle power: 8.2 kW
Back spindle speed: 0–10000 rpm
Back spindle power: 8.2 kW
Turning tool spindle speed: 5000 rpm
Driven tool power: 1 kW
Number of tool holders: 2
Number of tool stations: 22
Counter-operation tool positions: 8
Driven counter tools: 4
Turning tools count: 4
Drilling tools count: 4
Rapid traverse: 32 m/min
C-axis included
Bar loader: Top Automazioni Srl bar feeder system
Workpiece conveyor included
Chip conveyor included
High pressure coolant system: 20 bar
Central lubrication system included
Status light indicator included
Machine weight: 2400 kg
Overall length: 2912 mm
Overall width: 1300 mm
Overall height: 1720 mm
