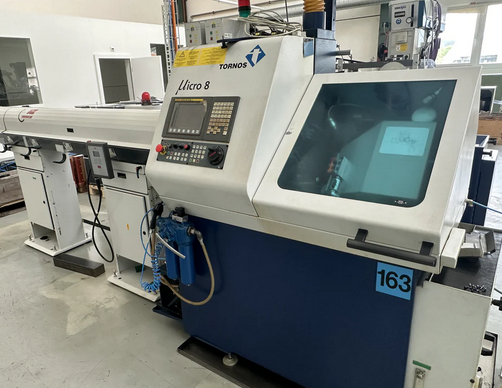

Tornos GE FANUC Series 32i-Model A 12000 RPM (stepless) SA Micro 8 7 Axis

Number of axes: 7
Workpiece maximum length: 20 mm
Maximum bar diameter: 10 mm
Rapid traverse X axis: 20 m/min
Rapid traverse Y axis: 40 m/min
Rapid traverse Z axis: 20 m/min
C-axis function
Control system: GE FANUC Series 32i-Model A
Bar capacity: 10 mm
Inner taper type main spindle: W15
Inner taper type back spindle: F13
Spindle speed range: 0–12000 RPM (stepless)
Back spindle speed range: 0–12000 RPM
Spindle motor power: 2.2 / 3.7 kW
Back spindle motor power: 2.2 / 3.7 kW
Total power requirement: 8 kVA
Voltage: 400 V, 3-phase, 50 Hz
Bar feeder: LNS Holding SA TRYTEX 08 (2009)
Oil mist extractor: Donaldson
Centering microscope included
Collet set included
Part separator included
Coolant system included
RS232 interface
High frequency spindle ×2
Status light included
Machine weight: 1600 kg
Machine dimensions (L×W×H): 1670 × 870 × 1650 mm
Condition: Used
