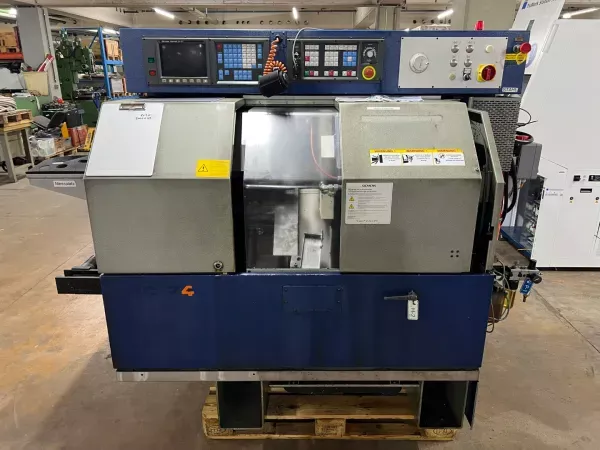

Tornos GE Fanuc Series O-TT 12,000 rpm ENC 74 T 5 Axis

X1 rapid feed: 7.5 m/min
Y rapid feed: 10 m/min
Z1 resolution: 0.00025 mm
X2 movement speed: 15 m/min
Z2 movement speed: 15 m/min

Counter spindle max speed: 12,000 rpm
Rotating units speed: 12,000 rpm
Control: GE Fanuc Series O-TT
Number of tools (guide bush holder): 7
Max cross drilling/milling tools: 3
Square tool layout: 8 x 8 mm
Main spindle speed: 15,000 rpm
Clamping force min/max: 270 / 590 daN
Maximum round bar passage: 7 mm
Minimum round bar passage: 1 mm
Square bar passage: 5 mm
Hexagonal rod passage: 6 mm
Max turning length fixed guide bush (7 mm): 113 mm
Max turning length fixed guide bush (10 mm): 109 mm
Turning length synchronously rotating guide bush (10 mm): 81 mm
Turning length synchronously rotating guide bush with 3 positions: 72 mm
Max turning length guide bush MAGIC (7 mm): 104 mm
Max turning length Habegger guide bush (10 mm): 103 / 94 mm
Schaublin collet type F13: 76-357
Number of positions (counter operations): 3
Tool holder hole diameter (counter operations): 35 mm
Center distance between positions (counter operations): 50 mm
End apparatus positions: 3
Center distance between end units: 50 mm
Fire extinguishing system: Siemens
Chip conveyor
Coolant tank/pump
High-pressure pump
Bar loader: LNS
