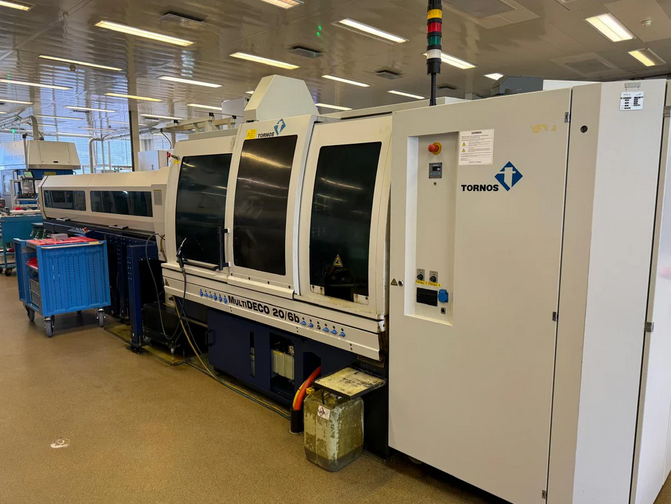

Tornos PNC-DECO FANUC 5000 t/min, stepless MULTIDECO 20/6b 17 Axis
Ref :
2752414-3-MT
Condition :
Used
Manufacturer :
Tornos
Controller :
PNC-DECO FANUC
Spindle Speed :
5000 t/min, stepless
Model :
MULTIDECO 20/6b
Nb Of Axis :
17 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Number of axes: 17
Number of cross slides: 6
Number of plain turning slides: 5
Longitudinal carriage way: 160 mm
Number of spindles: 6
Number of back spindles: 1
Round bar capacity: 5–20 mm
Maximum workpiece length: 100 mm
Spindle speed: up to 5000 t/min, stepless
Production capacity: 45 pcs/min
Voltage: 3x400 V, 50 Hz
Spindle power: 15 kW
Total installed power: 43 kVA
Control: PNC-DECO FANUC
Machine weight: 8500 kg
Machine dimensions (L x W x H): 3500 x 1600 x 1950 mm
Bar feeder: ROBOBAR MSF 522/6
Coolant system
Chip conveyor
Pick-up spindle
Spindle stop device
Lamp
Status light
