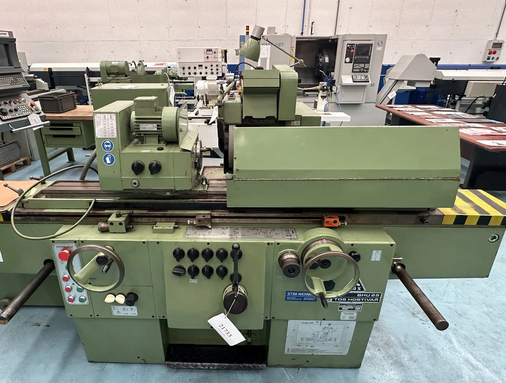

TOS BHU25

Distance Between Centers: 1000 mm
Swing Diameter: 280 mm
Max Longitudinal Travel: 1130 mm
Max Transversal Travel: 245 mm

Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 40 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Width (additional): 63 mm

Workpiece Weight (Between Centers): 60 kg

Grinding Wheel Speeds (Steps): 2
Grinding Wheel Speed Range: 1570–2050 rpm

Workpiece Spindle Speeds (Steps): 12
Workpiece Spindle Speed Range: 22–710 rpm

Spindle Taper: 4 CM
Tailstock Taper: 3 CM
Table Angular Displacement: ±7°
Angular Displacement: ±60°

Control: not specified

Grinding Wheel Motor Power: 4 kW
Total Power Required: 8 kVA

Machine Weight: 2500 kg

Accessories:
Tailstock with fine adjustment
Redressing device
Coolant system
Lamp
