TOS SIEMENS Sinumerik 820T Max. 250 U/min SKIQ 12 CNC B 2 Axis Vertical Turret Lathe - Single Column

Ref : 1183322-3
Condition : Used
Manufacturer : TOS
Controller : SIEMENS Sinumerik 820T
Spindle Speed : Max. 250 U/min
Model : SKIQ 12 CNC B
Nb Of Axis : 2 Axis
Type : Vertical Turret Lathe - Single Column
Year(s) : 1995
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 02 Sep. 2014

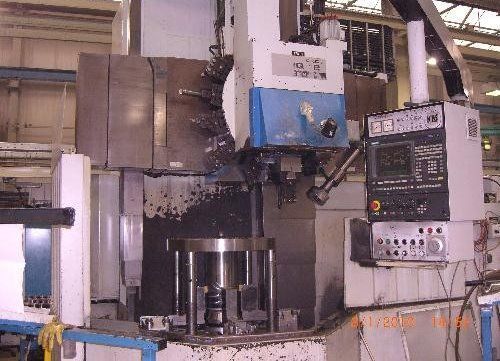

TOS SKIQ 12 CNC B
Year of construction 1995

faceplate ø 1250 mm
swing ø 1500 mm
turning height 1785 mm
faceplate turning speed range -stepless- 2,5-250 U/min
table load 12000 kg
cross rail - adjustment 1250 mm
cross-rail - rapid travel 0,48 m/min
ram adjustment 1000 mm
distance face plate/tool carrier 2020 mm
distance table - lower edge of ram 1880 mm
turning tool - shaft cross cut 40x40 mm
total power requirement 65 kW
weight of the machine ca. 27 t
dimensions of the machine ca. 4,0x3,2x6,1 m

Accessories:
SIEMENS Sinumerik 820T with electronic handwheel, ram head,
15-station toolchanger, tool adjustment with drive for rotating tools
13,8 kW, grinding attachment, complete covers, chip conveyor

- 2006 new faceplate bearing
- 2007 chip conveyor overhaul
- 2011 new spindle and drive gears
