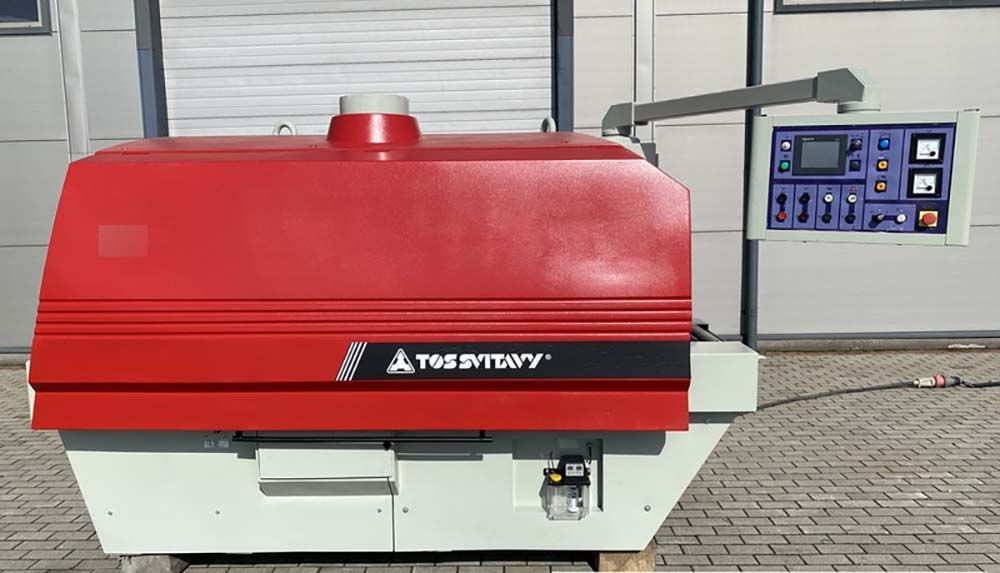

TOS Svitavy PWR 422 450/250 Two-shaft multi-saw

Max cutting height: 250mm
Track width: 450mm
Shaft width: 450mm
Disc bore diameter: 80mm
Shaft diameter: 60mm
Min. disc diameter: 300mm
Max. disc diameter: 400mm
Max. input material width: 860mm
Min. workpiece length: 900mm

* from above
Flingers +
Pneumatically pressed metal pull shaft +
Flingers +
Pneumatically pressed metal pull shaft +
Clamp +
Shaft with saws +
Clamp +
4 pneumatically pressed metal pull shafts +
* from below
Metal sliding roller +
Guide +
Flingers +
Crawler +
Shaft with saws +
Crawler +

Feed speed control via inverter: 4-40m/min
Main motors 2 x 110 kW
Feed motor: approx. 3 kW
Electric body lift (up/down): 0.55 kW
Electric adjustment of the saw shafts: 2 x 0.18 kW
Central lubrication +
Exhaust port diameter: 300 mm
Dimensions (L/W/H): 3100 x 2600 x 2100 mm
Weight: approx. 7130 kg
