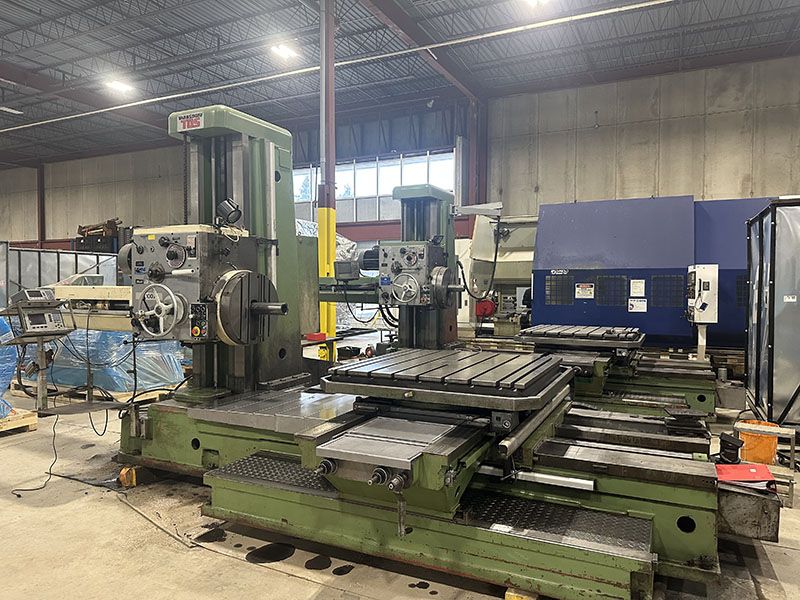

TOS Varnsdorf W100A ROTARY TABLE 4" 1120 RPM (23 speeds)
Ref :
2790733-3-CP
Condition :
Used
Manufacturer :
TOS Varnsdorf
Model :
W100A ROTARY TABLE
Spindle Size :
4"
Spindle Speed :
1120 RPM (23 speeds)
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Spindle diameter: 4"
Spindle travel: 35.5"
Cross table travel: 63"
Saddle travel: 49"
Max distance spindle to table: 44"
Table size: 49" x 49"
Spindle speeds: 7.1 – 1120 RPM (23 speeds)
Faceplate speeds: 7.1 – 224 RPM (16 speeds)
Boring feed range: 0.0008 – 0.47 IPR
Milling feed range: 0.7 – 35.4 IPM
Rotary table feed range: 0.98 – 55 IPM
Rapid traverse: 110 IPM
Spindle taper: #50
Main motor: 15 HP
Max workpiece weight: 6,600 lbs
Machine weight: 35,000 lbs
Power draw bar
4-axis digital readout
Digital display for rotary axis
Rotary table
Facing head 23.5"
Way covers X and Z
Threading capability inch/metric
Hardened and ground bed ways
Hardened and ground table ways
