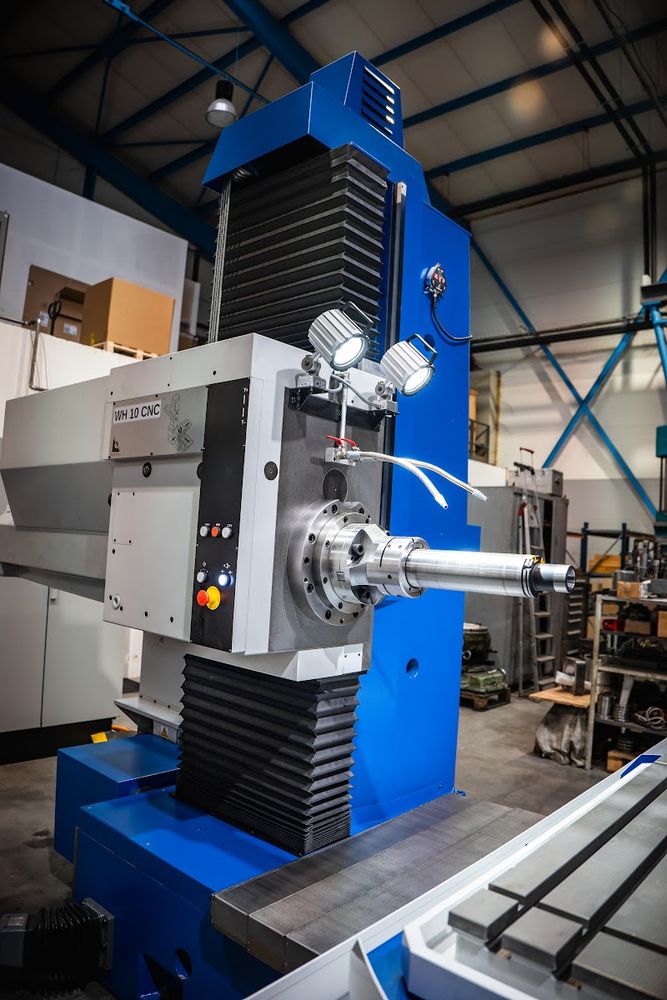

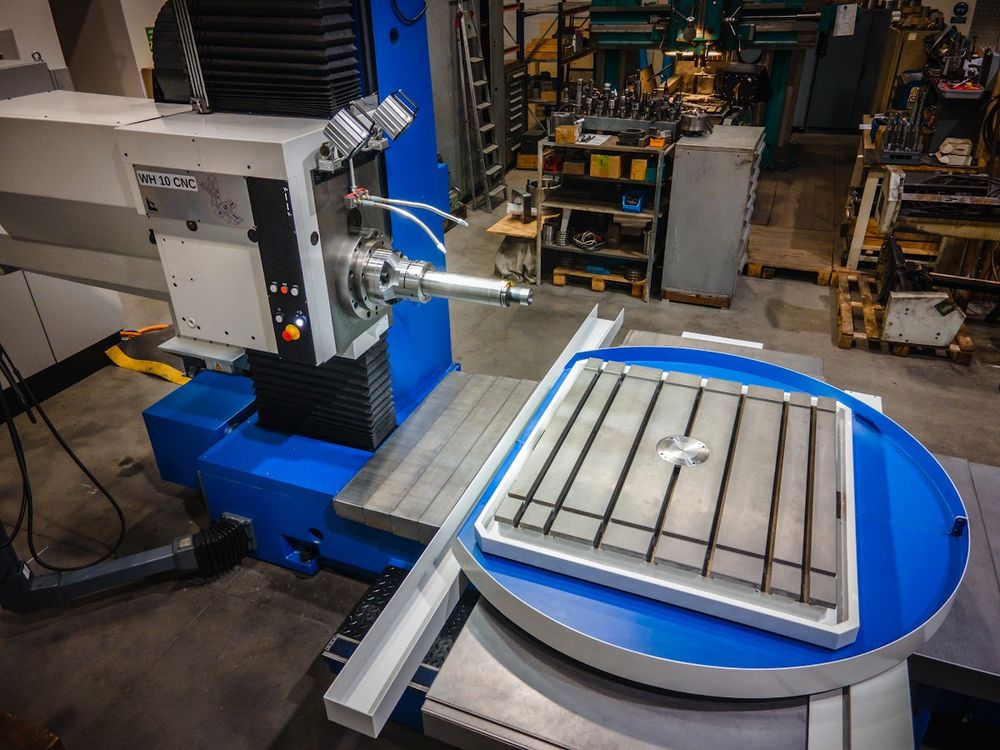

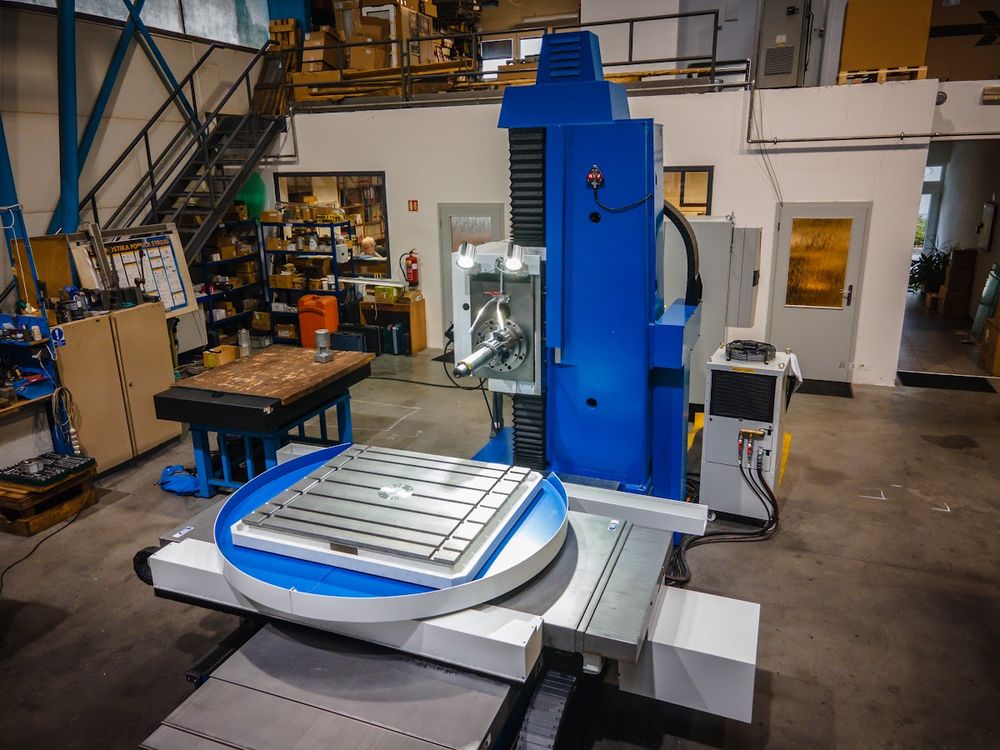

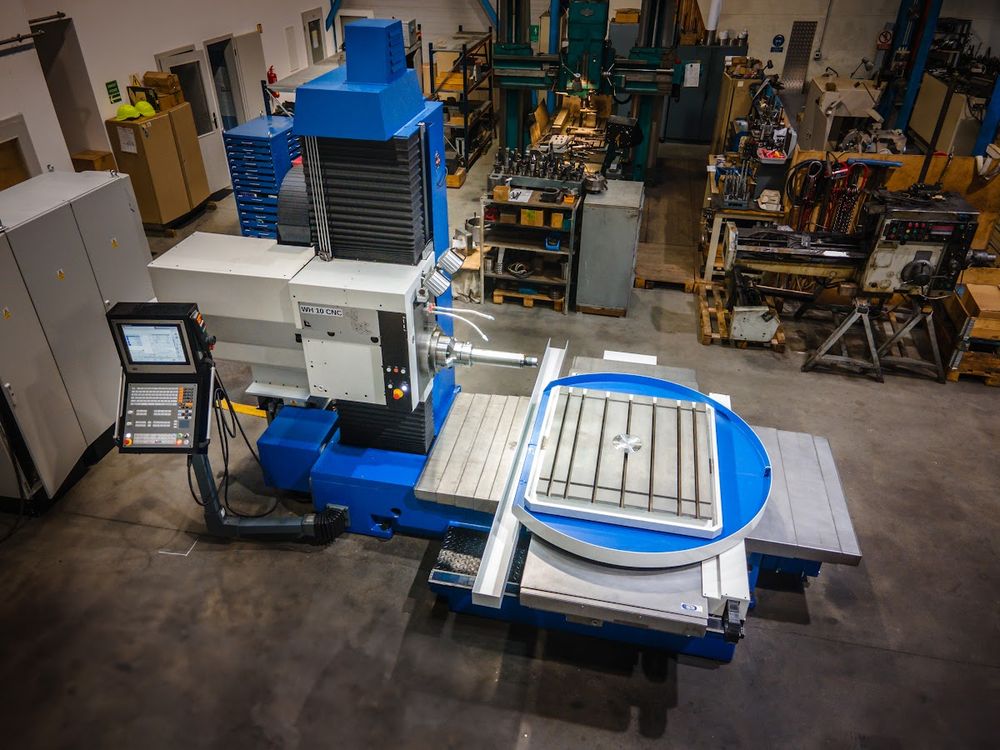

TOS Varnsdorf WH 10 CNC
EUROPE (Central and Eastern)
Year 2026
Control system Heidenhain TNC 620

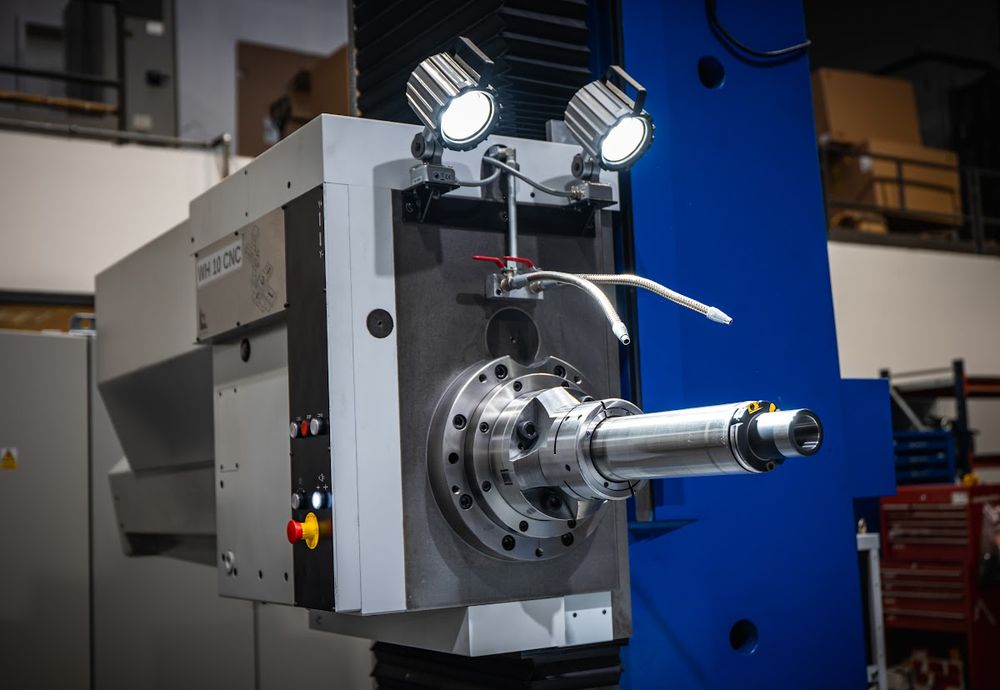

Diameter of working spindle 100 mm
Travel X-axis 1250 mm
Travel Y-axis 1030 mm
Spindle speed 16 - 2500 /min.
Cooling through spindle NO
Spindle travel - W axis 730 mm
Travel Z-axis 930 mm
Tool magazine NO
Spindle taper ISO 50 .
Rapid feed 8 m/min

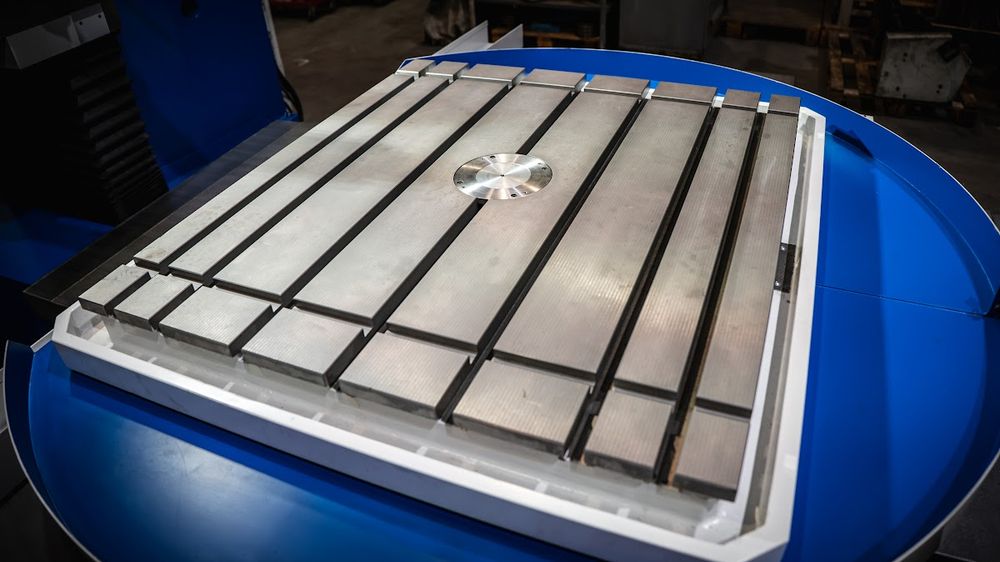

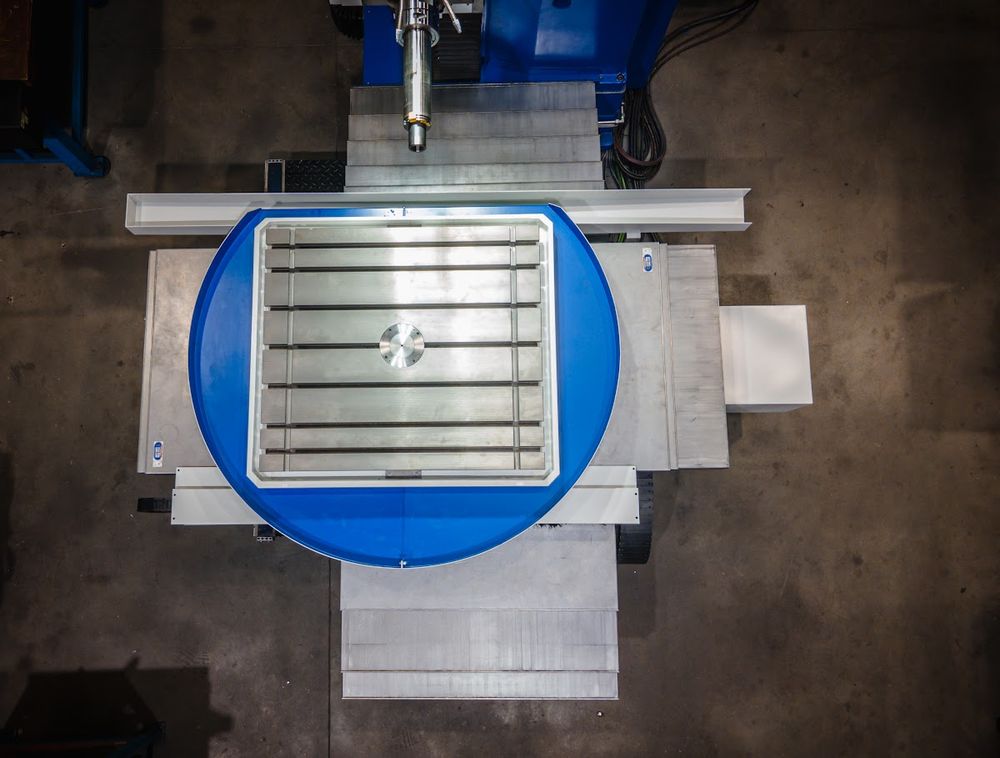

Table dimensions 1000x1120 mm
Max. load of table 3000 kg
Machine dimensions l x w x h 5000x3050x2800 mm
Machine weight 11500 kg

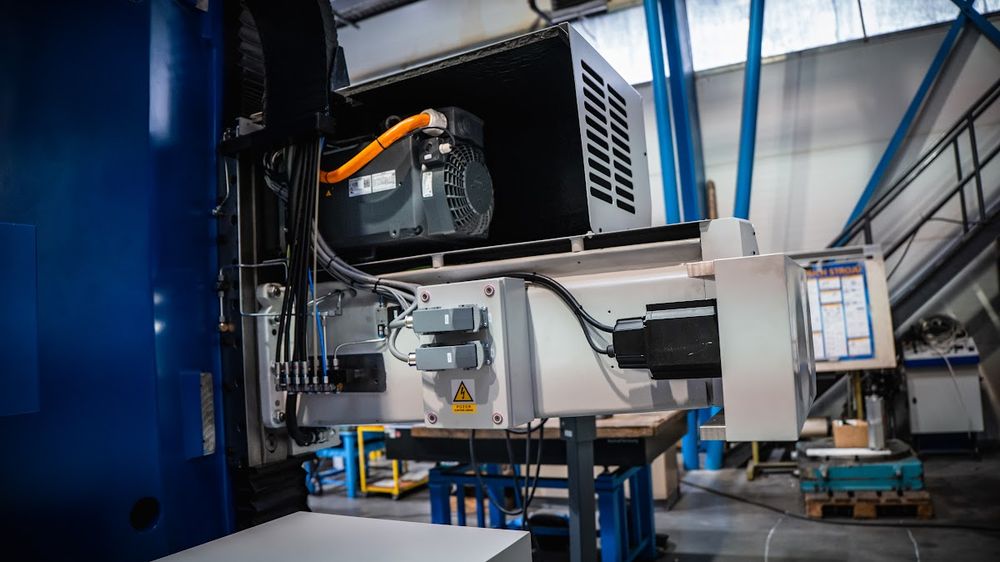

spindle motor: Siemens 17.5 kW S1 (26.25 kW S6-40%)
control system: including options 19,20 (extended programming functions, graphics during testing and machining)
controlled axes: X/Y/Z/W/B
workpiece probe: Heidenhain TS 460, including option 17 (touch probe cycles)
handwheel: Heidenhain HR510
measuring, rulers: Heidenhain, EnDat 22 (X,Y,Z LC415)
displacement motors: Heidenhain QSY
external tool cooling: 1.5 bar 38 l/min
tool change: manual change, cavity blow
removal of chips: collecting tub
X/Z cover: telescopic

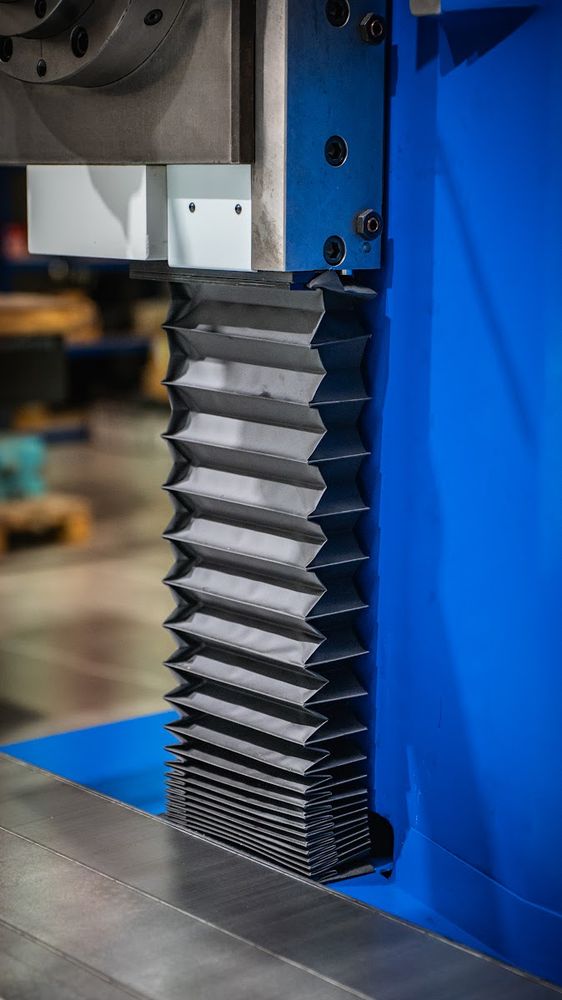

covering Y: bellows
work air pressure: 6 bar
positioning accuracy:
