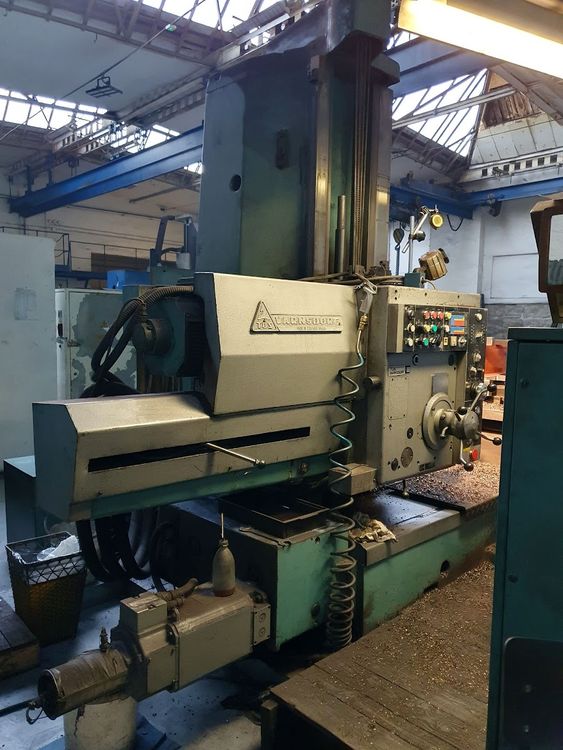

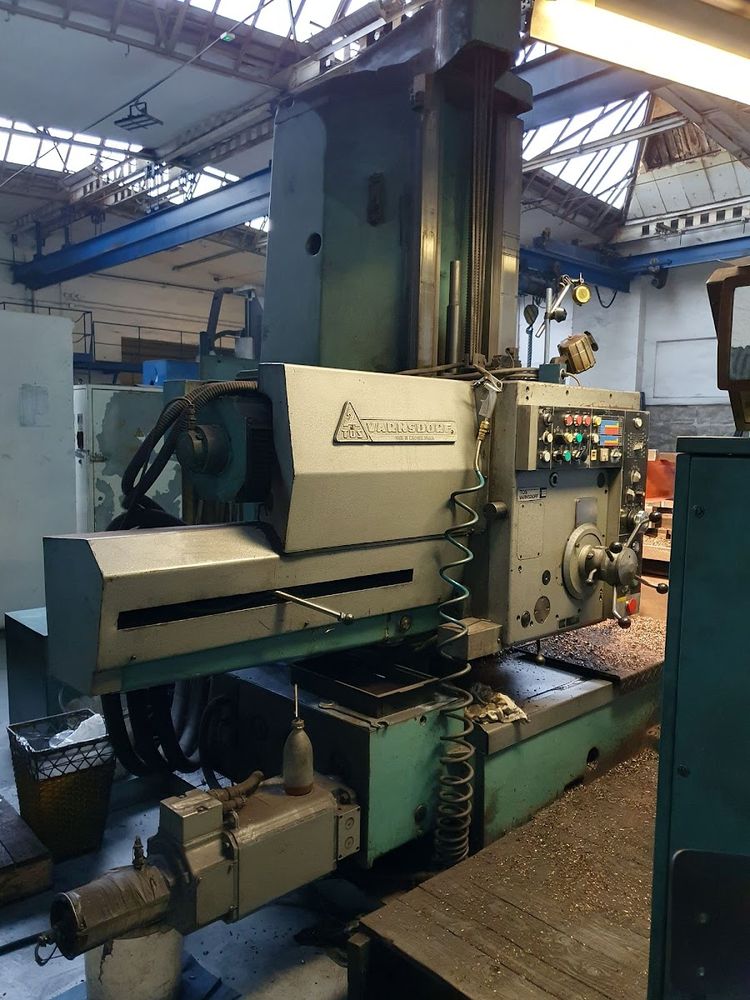

TOS Varnsdorf WHN 9 B 90 mm 0 - 1120 /min.
Ref :
2736104-3-MT
Condition :
Used
Manufacturer :
TOS Varnsdorf
Model :
WHN 9 B
Spindle Size :
90 mm
Spindle Speed :
0 - 1120 /min.
Year(s) :
1981
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Year: 1981
Diameter of working spindle 90 mm
Travel X-axis 1250 mm
Travel Y-axis 900 mm
Spindle speed 0 - 1120 /min.
Cooling through spindle NO
Spindle travel - W axis 680 mm
Travel Z-axis 1000 mm
Tool magazine NO
Spindle taper ISO 40 .
Max. load of table 3000 kg
Rapid feed XYZ 18 – 900 / 3.200 m/min
Clamping area of rotary table 1000 x 1120 mm
Machine weight 10 000 kg
Space of machine 5000 x 2500 x 2800 mm
The machine is in good technical condition, under power, after agreement is possible to test it.
