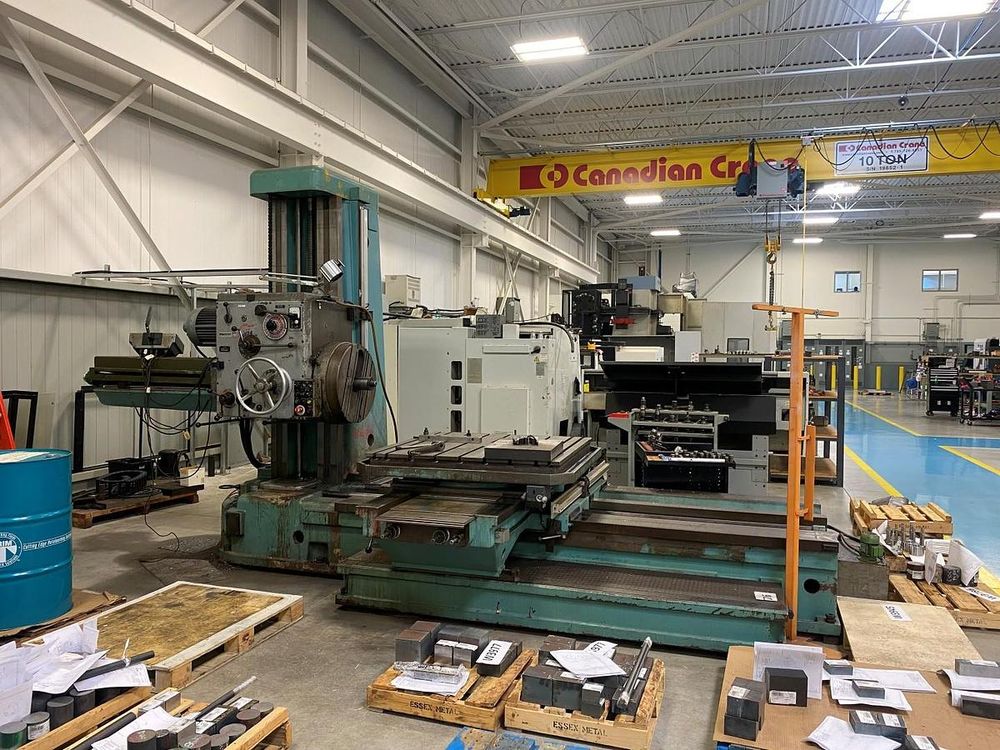

TOS W-100A 100 mm (3.94 in) 1120 rpm

Spindle diameter: 100 mm (3.94 in)
Spindle taper: Morse 6
Max spindle to table distance: 0–1120 mm (0–44 3/32 in)
Min spindle to table distance: 0 mm
Centerline to top of table: 0–1120 mm (0–44 3/32 in)
Max boring depth per travel: 900 mm (35 7/16 in)
Max distance between faceplate and back rest: 2800 mm (110 15/64 in)
Faceplate diameter: 600 mm (23 5/8 in)
Centering diameter of faceplate: 280 H6
Clamping surface of table: 1250 × 1250 mm (49 7/32 × 49 7/32 in)
Max workpiece weight: 3000 kg (6600 lbs)
Table size: 1250 × 1250 mm
Max permissible table loading: 3000 kg (6600 lbs)
Longitudinal travel of saddle: 1250 mm (49 7/32 in)
Cross travel of table: 1600 mm (63 in)
Vertical travel of spindle head: 1180 mm (46 1/2 in) approx.
Spindle speeds: 23 ranges, 7.1–1120 rpm
Spindle torque at 7.1 rpm: 110 kgm (796 ft-lb)
Spindle torque at 1120 rpm: 8 kgm (65 ft-lb)
Feeds: 32 feed rates, 0.000787–0.4724 in/rev; multiple power feeds
Power input: 10 kW
Approximate weight: 17500 kg (38500 lbs)
