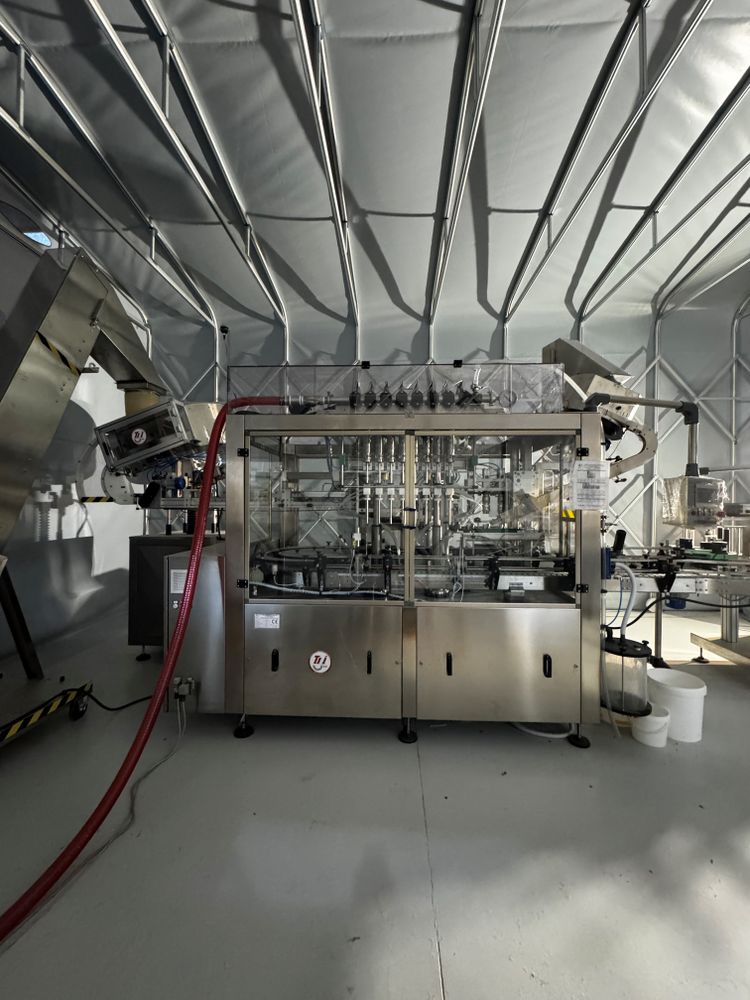

Toscana Automazione ARNO R8MG/T3 AUX + 1T-200 + U2-PRO

Installed power 8 kW
Dosing adjustment from 100 ml to 5,000 ml
Dosing system: magnetic flow meters
No. of dosing heads
No. of capping heads 3
Cap feed: automatic with automatic distributor
Closing system: Pic&place with magnetic clutch
H. Conveyor belt 950 mm +/- 30 mm
CE + ATEX 3 G construction (Zone 2)
Speed:
format F1 – Volume 1000 ml – 30 / 35 pieces/min
format F2 – Volume 500 ml – 45 / 50 pieces/min
format F3 – Volume 100 ml – 45 / 50 pieces/min
2) Automatic labeling machine Model Ticino 1T-200
Formats and application: SEMI-WRAP: Formats F1+F2
FRONT: F3
Label diameter: Min 25 mm – Max 200 mm
Minimum distance between labels 3 mm
Minimum distance from edge
Label length Min 20 mm – Max 300 mm
Machine speed:
Front and/or back: 60 pcs/min with 50 mm long label
Wrapping: 50 pcs/min with 100 mm long label
30 pcs/min with 250 mm long labels
Pre-set for Industry 4.0
With bottle-label format change: F1 – E 1 / F3-E3
3) Ink-jet marker with U2-PRO cartridge technology
From 1-4 print lines
4) With 1.20 mm rotating accumulation table
