Toshiba Angle Head
United States (USA)
Reference #30912

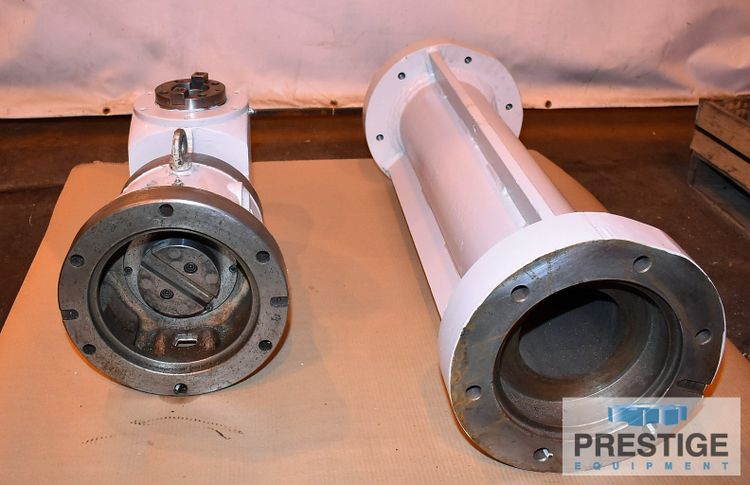

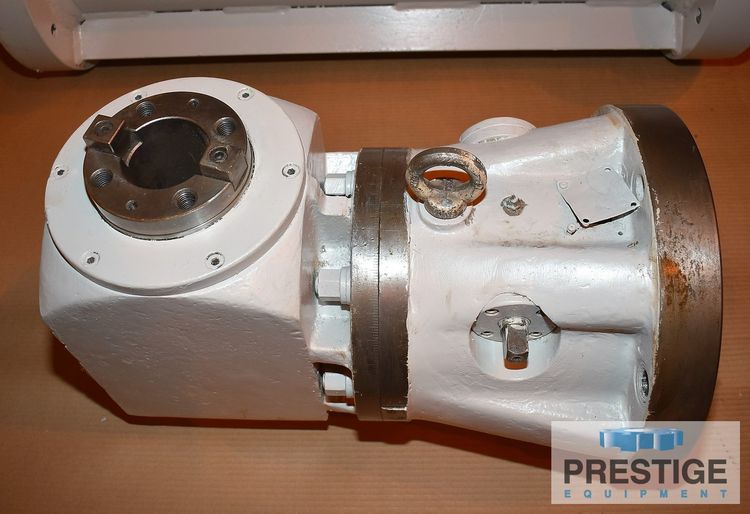

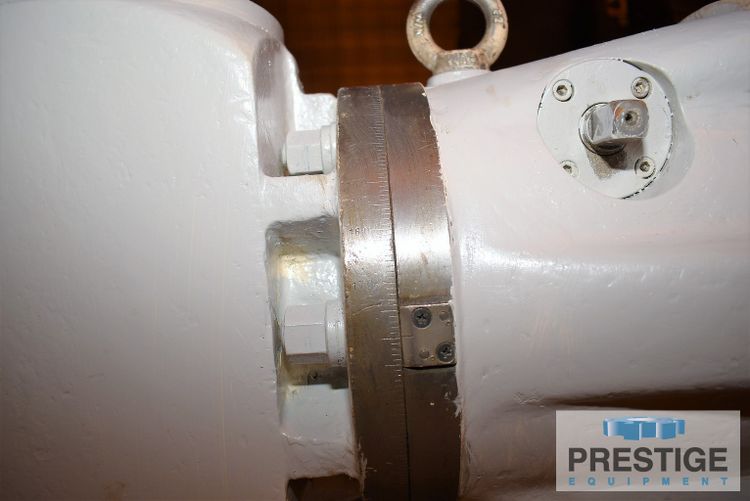

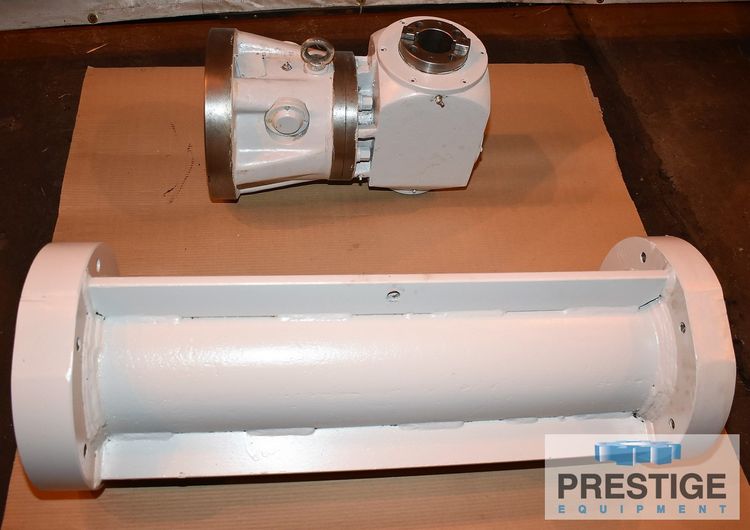

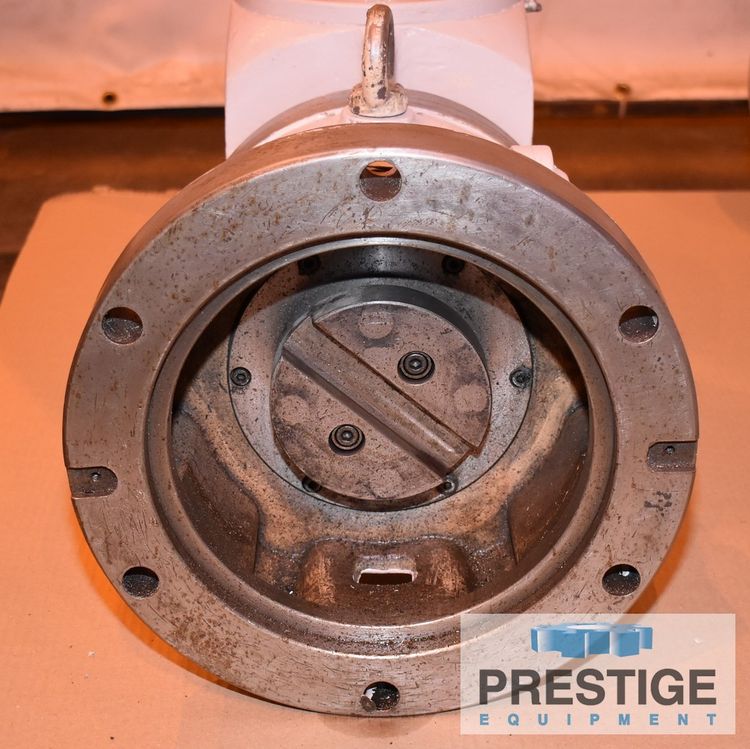

Toshiba Angle Head
FEATURES:
Bell Housing Extention
360 Degree Swivel
Lifting Lug
CAPACITY:
Spindle Taper ......................... #50
Max Reach w/ Extention ................ 33"
Max Reach w/ out Extention ............ 17"
Head Height ........................... 15.5"
Head Width ............................ 8.5"
Overall Length w/ Extention ........... 36"
Overall Length w/out Extention ........ 21"
Swivel ................................ 360 Degrees
Flange Size ........................... 13.25"
Bolt Hole Pattern ..................... 10.5"
Number of Bolt Holes .................. 6
Bolt Hole Diameter .................... .75"
EQUIPPED WITH:
Bell Housing Extention
360 Degree Swivel
Lifting Lug
