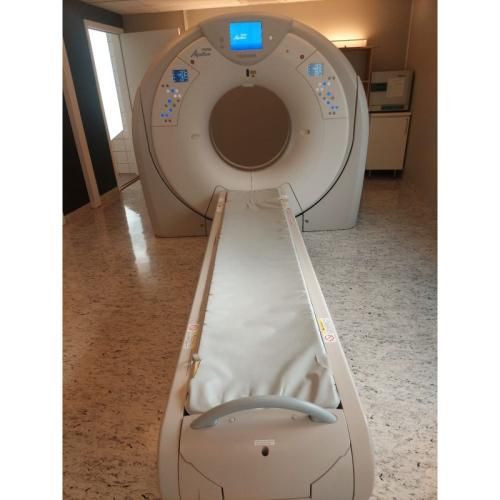

Toshiba Aquilion Prime 80 multi-slice CT Scanner

YOM: 2015
Software Version: V8.2
Base Version: V12.4
Tube ss: 1 138 320
Tube Exp Count: 1 288 480
Licenses: ALATO_3DVIEWER ALATO_MULTISLICECT ALATO_STANDARD
CB_HISPEC DAILY_CHECK DCM_CDR DPRTBW DPRTCOLOR EHCT_SCP
EHCT_SCU MULTIVIEW MWM_SCU OVER64HEL PRINT_SCU
REALEC REAL_PREP REAL_VIEW SCAN80ROW STRG_SCU TIFF
TOS_SERVICE TSB_DVD WINPRT

Features
Variable Helical Pitch scanning
SURESubtraction mode for vascular imaging
SURECardio Prospective with arrhythmia rejection
Dual Energy with organ-modulated kV switching
Real-time 3D CT fluoroscopy with needle tracking
Fast reconstruction with noise reduction (AIDR 3D)
InstaView: instant reconstruction and display
Tech Assist Lateral Slide for simplified patient positioning
HybridView: a single image combining lung details and soft tissue
VitreaView integration compatible with EMR, EHR and HIE

Technical Details
Type: Multi-slice CT scanner
Number of slices: 80 slices per rotation
Dose reduction technology: AIDR 3D (Adaptive Iterative Dose Reduction)
Ultra-fast helical acquisition with ±30° tilt
Spatial resolution: high with Quantum 80 detector
Reconstruction: up to 60 images/second
Scanner tunnel (bore): 78 cm
Table width: 47 cm
Minimum installation area: 14.8 m²
Approximate weight: 2,300 kg

Compatible Accessories
SURESubtraction software module: for automatic subtraction of bone and
calcium structures, ideal for vascular imaging.
SURECardio Prospective software module: for cardiac imaging with
ECG synchronisation and arrhythmia management.
Real-time 3D CT fluoroscopy: for interventional procedures with
oblique and double oblique needle tracking.
CT-guided biopsy planning tools: with dynamic localisation and tracking.
Vitrea visualisation applications: for cardiovascular,
neurovascular and oncological analysis.
HybridView module: combined reconstruction optimised for
lung structures and soft tissue.
