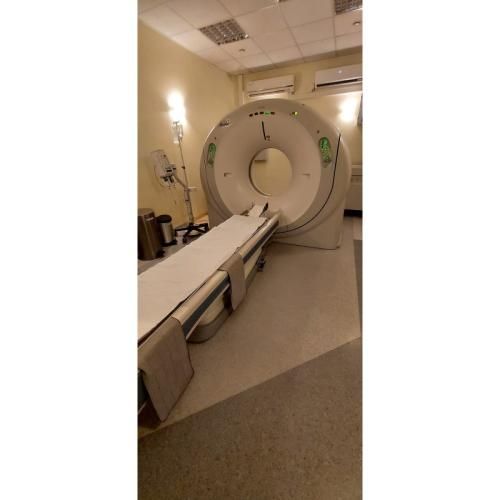

Toshiba Aquilion RXL CT Scanner

YOM: 2013
Tube YOM: 2022
Tube SliceTime: 318k ss
Licenses: ALATO_3DVIEWER ALATO_MULTISLICECT ALATO_STANDARD
COMMIT_SCU DCM_CDR DIM_EXP DOUBLESLICE D_PRT_BW
D_PRT_COLOR MULTIVIEW MWM_SCU PPS_SCU PRINT_SCU
QR_SCP QR_SCU REALEC REAL_PREP REAL_VIEW REMOTE_DISPLAY
STRG_SCP STRG_SCU TIFF TSB_DVD WINPRT

Features
AIDR 3D for automatic dose reduction without compromising quality
SUREExposure 3D: automatic modulation of current (mA) according to anatomy
Active collimation to limit off-field radiation
Ergonomic user console with 3D visualisation
MultiView reconstruction system with automatic MPR
Automated removal of bone structures in angiography (CTA)
Integrated clinical technologies: SUREStart (bolus tracking),
SUREFluoro (real time), SURESubtraction (vascular imaging)*
Real-time reconstructions at 12 frames per second
Architecture optimised for emergency examinations
and interventional procedures
Compatible with IHE requirements for structured dose reporting

Technical Details
Scanner type: 16-detector row CT
Collimation size: 0.5 mm × 16
Rotation speed: 0.5 seconds
Gantry opening: 72 cm with ±30° tilt
Spatial resolution: 0.5 mm
Number of slices per rotation: 32 (coneXact technology)
Dose reduction: AIDR 3D, SUREExposure 3D, active collimation,
XR-25 (Dose Check)
Console interface: single or dual console, integrated 3D
Transfer speed: up to 60 images/second (DICOM protocol)
Approximate weight of the entire system: ±2,000 kg

Compatible Accessories
Single or dual console with 3D visualisation station
SURETechnologies software: SUREStart, SURESubtraction*, SUREFluoro*
Integrated active collimation system
Motorised examination table with height adjustment
Bolus tracking kit (optional)
Pre-recorded clinical protocols by anatomy
Multi-destination data transfer device
High-speed DICOM interface
Post-processing applications (MPR, MIP, VRT)
