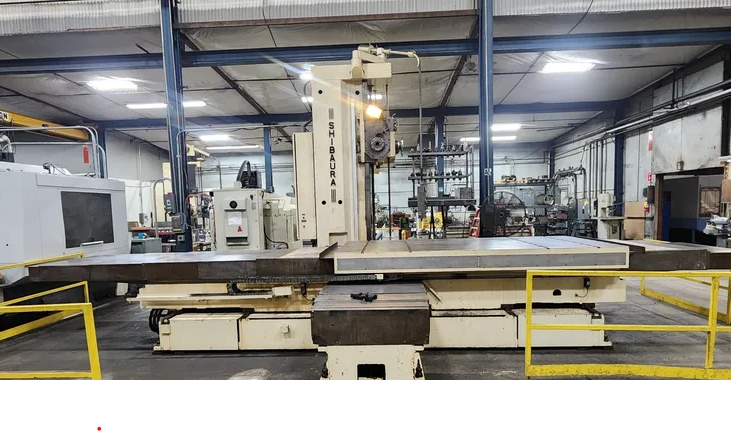

Toshiba BFT-13C-W3 5.12" 1200 RPM

TOSHIBA BFT-13C-W3
Year: 1979

DIAMETER OF SPINDLE .................. 5.12"
TAPER IN SPINDLE ..................... #50
DIAMETER OF MILLING QUILL ............ 8.86"
SPINDLE TRAVEL ....................... 35.4"
HEADSTOCK VERTICAL TRAVEL ............ 82.7"
TABLE WORKING SURFACE ................ 59.1" X 118.2"
TABLE CROSS TRAVEL ................... 118.2"
TABLE LOAD ........................... 22,000 LBS.
TABLE LONGITUDINAL TRAVEL ............ 63"
RAPID TRAVERSE RATE .................. 126 IPM
SPINDLE SPEEDS (27) .................. 9 TO 1200 RPM
FEEDS RANGES:
HIGH SPINDLE SPEED RANGE .......... .0001 - .07 IPR
MEDIUM SPEED RANGE ................ .0006 - .315 IPR
LOW SPINDLE SPEED RANGE ........... .0003 - 1.73 IPR
APPROX. WEIGHT ....................... 72,500 LBS
DIMENSIONS ........................... 264"F-B x 315"W X 175"H

- FOUR WAY BED CONSTRUCTION AND OUTRIGGERS
- #50 TAPER POWER DRAW BAR
- T-SLOTTED TABLE
- POWER RAPID TRAVERSE
- HARDENED WAYS ALL AXES
- SIMPLE PENDANT CONTROL
- NEWALL DIGITAL READOUTS
- TELSCOPIC WAY COVERS FOR CROSS & SADDLE TRAVELS
- 25 HORSE POWER SPINDLE MOTOR
- SPINDLE SUPPORT
- RIGHT ANGLE HEAD (2)
