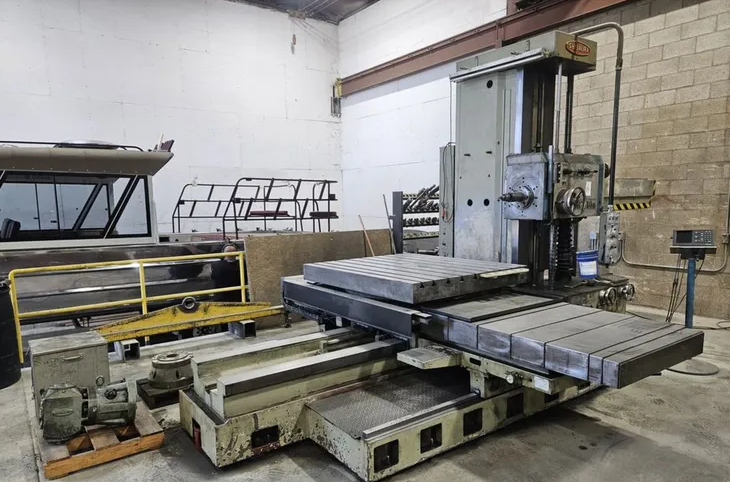

Toshiba BT-10B-R3 4" 1,000 RPM

Ref : 2745510-3-AW

Condition : Used

Manufacturer : Toshiba

Model : BT-10B-R3

Spindle Size : 4"

Spindle Speed : 1,000 RPM

Year(s) : 1977

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

69277

TOSHIBA BT-10B-R3

1977

X-Axis Travel 71"
Y-Axis Travel 57"
W-Axis Travel 57"
Z-Axis Spindle Travel 28"
#50 Taper with Power Draw Bar
Spindle Size 4"
Spindle Speeds 20 to 1,000 RPM
Spindle Motor 15 HP
Table Load Capacity 14,000 Lb
Table Size 55" x 63" Power Rotary Table
Right Angle Head
Digital Readouts (3-Axis)
Pendant Control
Waycovers
Hard Ways
Spindle Support
