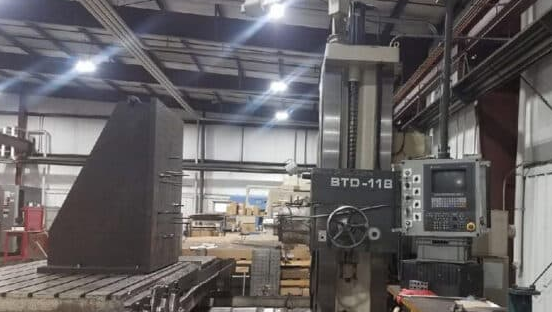

Toshiba BTD-11B 4.33″ HBM 4.33” 1600 RPM
Ref :
2751381-3
Condition :
Used
Manufacturer :
Toshiba
Model :
BTD-11B 4.33″ HBM
Spindle Size :
4.33”
Spindle Speed :
1600 RPM
Year(s) :
1986
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
X-Axis Travel: 98.4”
Y-Axis Travel: 59.1”
Z-Axis Travel: 59.1”
Table Longitudinal Travel: -5.9” to 57.1”
Spindle Diameter: 4.33”
Spindle Nose Taper: No. 50
Spindle Extension Length: 24.8”
Spindle Speed High Range: 400 – 1600 RPM
Spindle Speed Low Range: 8 – 400 RPM
Rapid Feed: 126 IPM
Main Motor: 20 HP
Table Working Area: 59.1” x 98.4”
Max Table Load: 17,640 lbs
Control: Allen Bradley 9/Series
Floor Space Required: 284” x 246” x 173”
Machine Weight: 48,510 lbs
